Mesh Metal Decor Chainmail Fabric Link Chain Curtain Popular Flexible Spiral

Short Description:

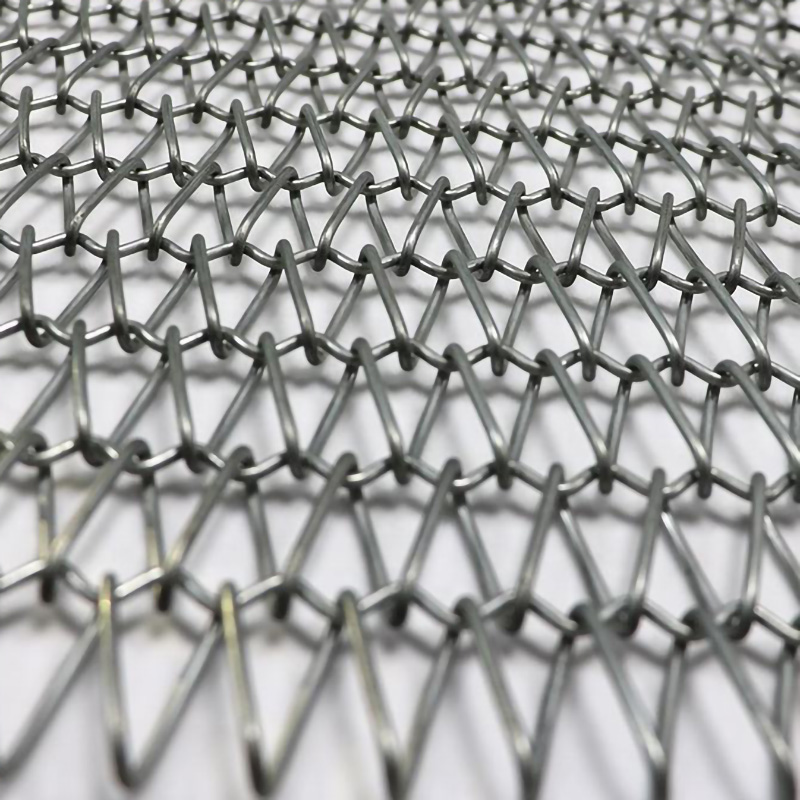

Conveyor belt mesh, also called spiral weave mesh, is a type of decorative metal fabric. It is manufactured with super quality stainless steel wire, copper wire, brass wire and other steel wire. The structure of conveyor belt mesh is spiral wire and cross rod wire with knuckled edge or welded edge.

Product Detail

Product Tags


Spiral wire of conveyor belt mesh has two types: flat wire and round wire. The cross rod wire can be straight or pres-crimped wires.

Conveyor belt mesh is widely found in the architecture, such as the facade cladding, handrails, balustrade, wall decorations and space dividers.

Conveyor belt net-application-3

Raw Material

Material: stainless steel wire, copper wire or brass wire.
Spiral wire type: flat wire or round wire.
Spiral wire diameter:
Flat wire diameter: 2.5mm, 3mm, 3.2mm, 3.3mm, etc.
Round wire diameter: 1.2mm, 2.6mm, etc.
Spiral pitch: 3mm, 8mm, 12.5mm, 20mm, 24.3mm, 35mm, 36mm, 38mm,
Rod type: straight wire or pres-crimped wire.
Rod diameter:
Straight wire diameter: 2mm, 3.5mm, etc.
Pres-crimped wire diameter: 1.3mm, 2mm, 2.5mm, 2.6mm, 3mm, 3.5mm, etc.
Rod pitch: 13mm, 15mm, 22.5mm, 25mm, 30mm 40mm, 60mm, 64.5mm, etc.


Flat or round spiral wire.
Stainless steel wire for durable and long lasting.
Copper and brass wire for beautiful and attractive surface.
Knuckled and welded edge for choice.
Functional. Can be used as space divider, security handrails and balustrade.
Decorative. It is widely used as facade cladding and wall decorations.
Best stength,high mechanical strength, easy to fabricate, weld, punch, shear, or otherwise form into various parts.
stable pore structure.
Wide filter rating ranges for choice can used for uniform filtration in high pressure or high viscosity environment; easy to back wash, long working life(can be used against water, filtrate,ultrasonic wave,melted,baking and cleaning method.
anti-corrosion, and heat resistance, can be used in -200°c~600°c temperature environment and acid and alkaline environment of filtering.
Stable air permeability, flow rate.


Conveyor belt mesh, decorative and functional metal fabric, is more and more popular in various applications:

Decorative conveyor belt is widely used in architectural decoration, such as room dividers, guardrail, ceiling decoration, wall decoration, door curtain, balustrades, shop exhibition stands, building facade, column cladding, craft projects and more. It can be applied in a variety of places.

Conveyor belt net-application-2
