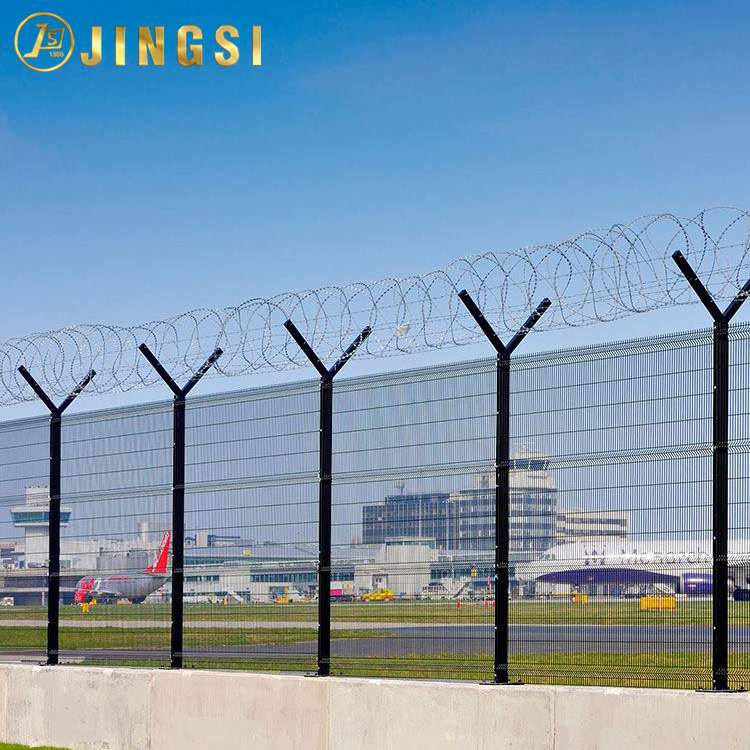

Airport Security Fence
Description
Airport fences, also known as airport perimeter fences or airport security fences, are specialized fences designed to provide security and control access to airport facilities.

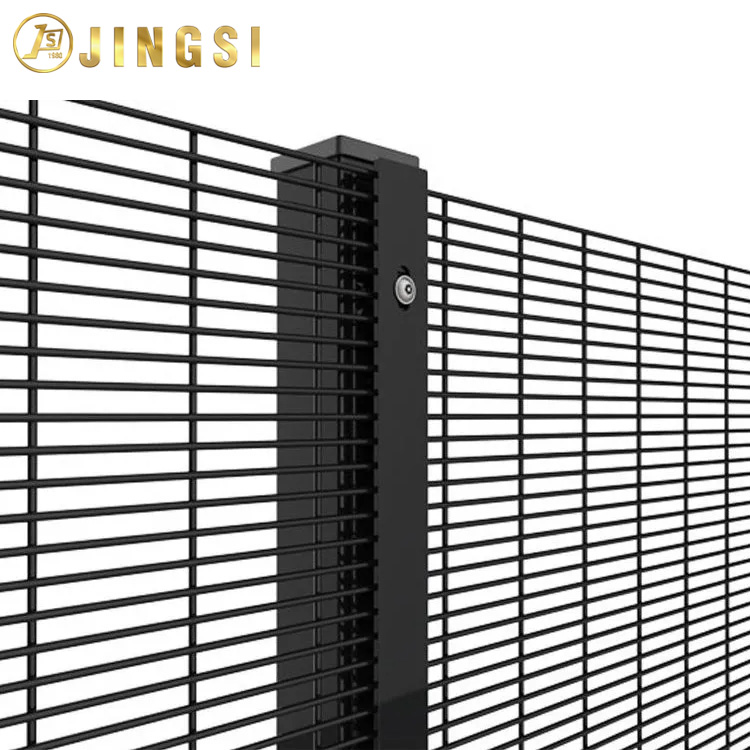

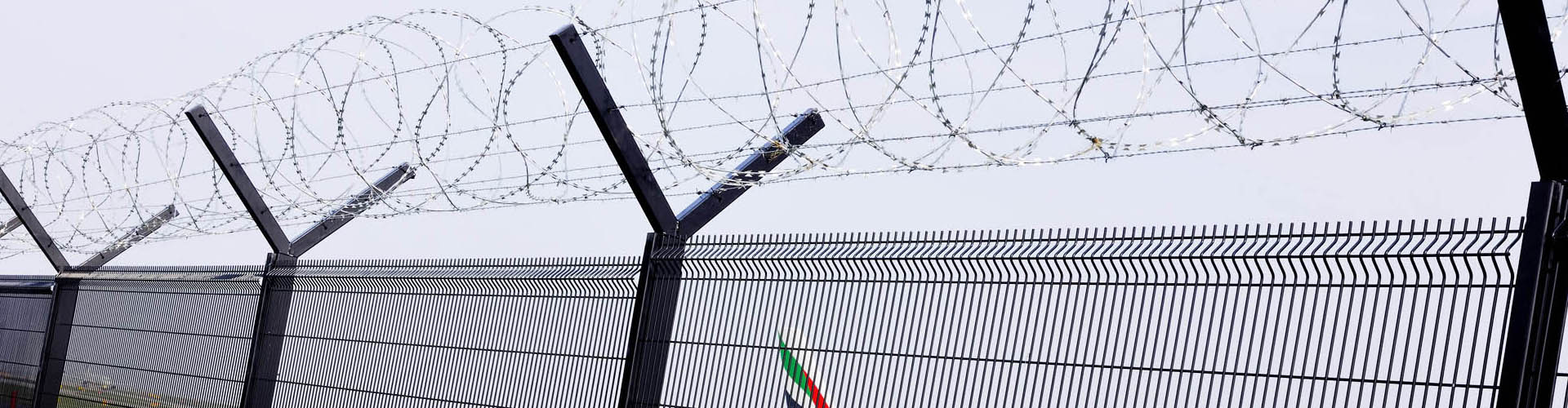

358 mesh panel:
358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.
Posts are manufactured from steel tubular section with threaded inserts for fixing the steel mesh clips. Additional fixings are provided to accommodate stepping of panels where the fence is installed on a gradient.

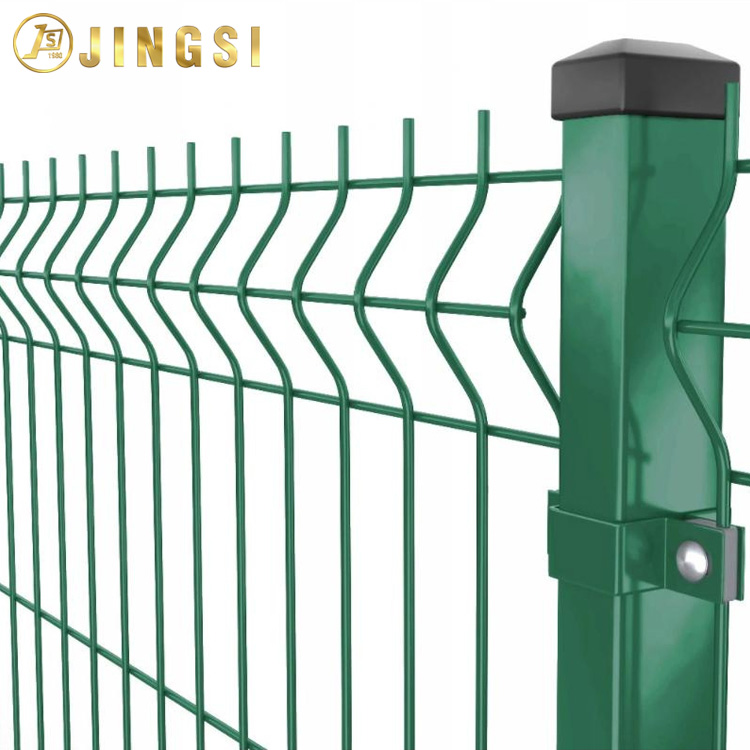

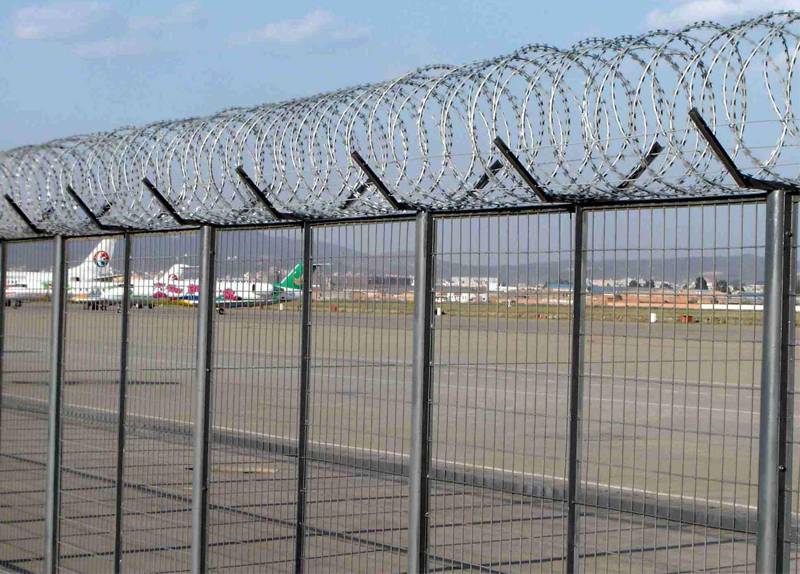

Curvy welded mesh panel:
It is a type of welded wire mesh which has V-shaped strengthening bending curves. It is made of high quality low carbon steel wire, then will be hot dipped galvanized,powder coated or pvc coated.

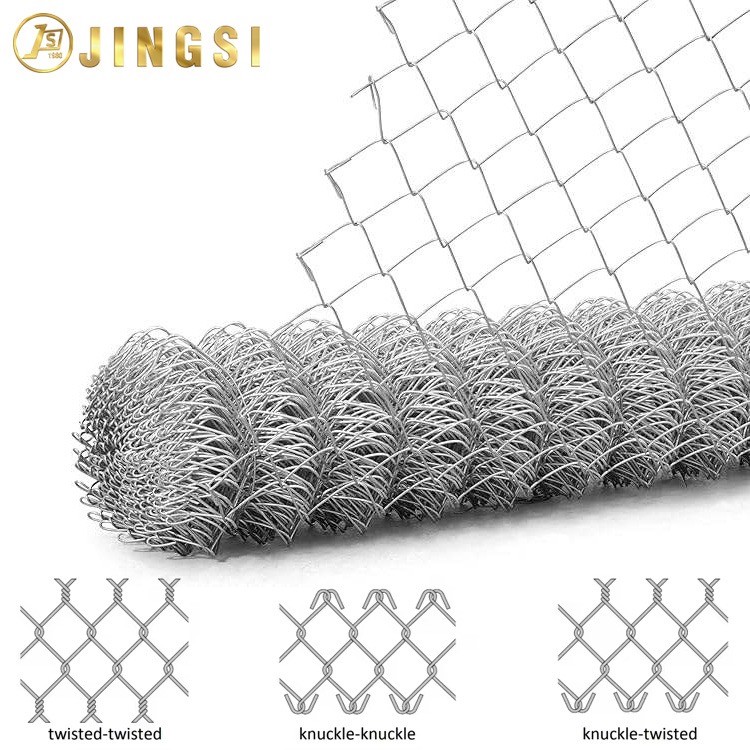

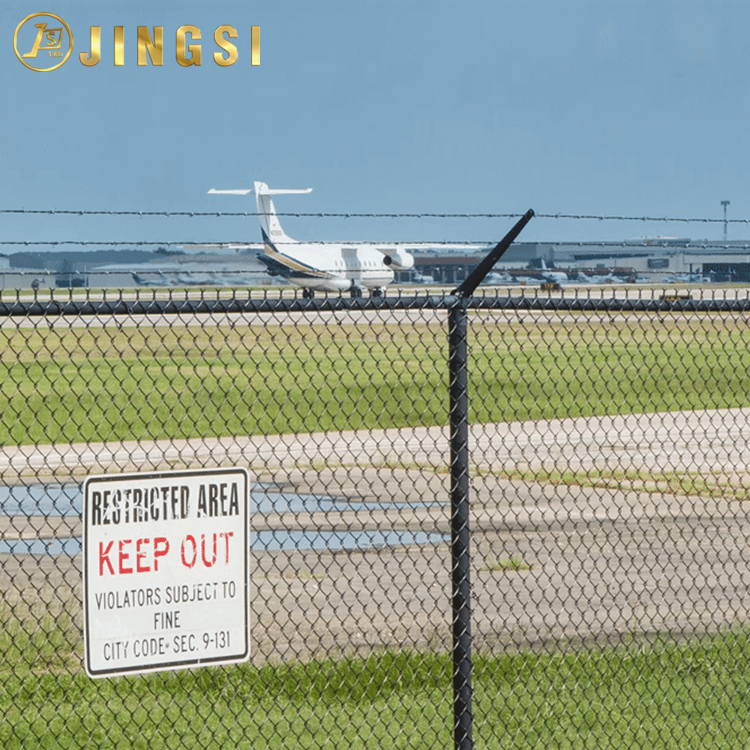

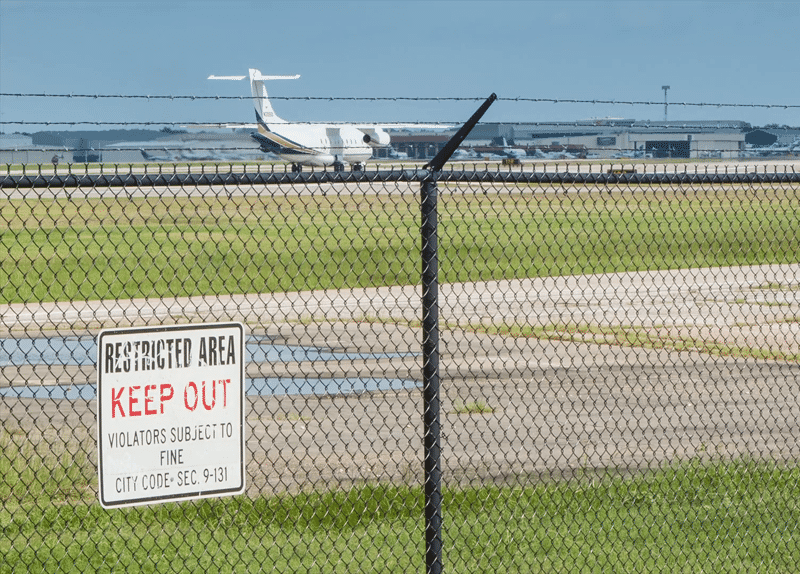

Chain link mesh panel:
It is a type of woven fence usually made from galvanized or PVC-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence.
Panel wire: Q195&Q235 Low carbon wire
Post: hot dipped galvanized tube, no coated tube
Bolts: M8 anti-vandal steel or stainless steel
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Color: Green, black, yellow, white,blue, etc.
Razor wire: Q235 galvanized material with 50-60g/m2&200g/m2 zinc coating or electro coating.
Characteristic
| Mesh panel type | Panel height | Panel Width | Mesh size | Wire diameter | Post |
| Curvy welded mesh panel | 2.0-3.0m | 2.5m | 50*200mm50*100mm75*150mm | 3.0-6.0mm | 60*60mm80*80mm100*100mm |
| Chain link mesh panel | 2.0m*15m2.4m*15m3.0m*15mDistance of post:2.5-3.0m | 50*50mm60*60mm80*80mm | 3.0-6.0mm | 48mmOD60mmOD | |
| 358 mesh panel | 2.0-3.0m | 2.5m | 76.2*12.7mm(3’’*0.5’’) | 3.0-6.0mm | 60*60mm80*80mm100*100mm |
| Razor wire type | Razor wire diameter | ||||
| BTO-10; BTO-12; BTO-18; BTO-22; BTO-28; BTO-30; CBT-60; CBT-65 | 450mm,500mm,600mm,700mm,900m,960mm | ||||
| Above are general specification,others are available. | |||||

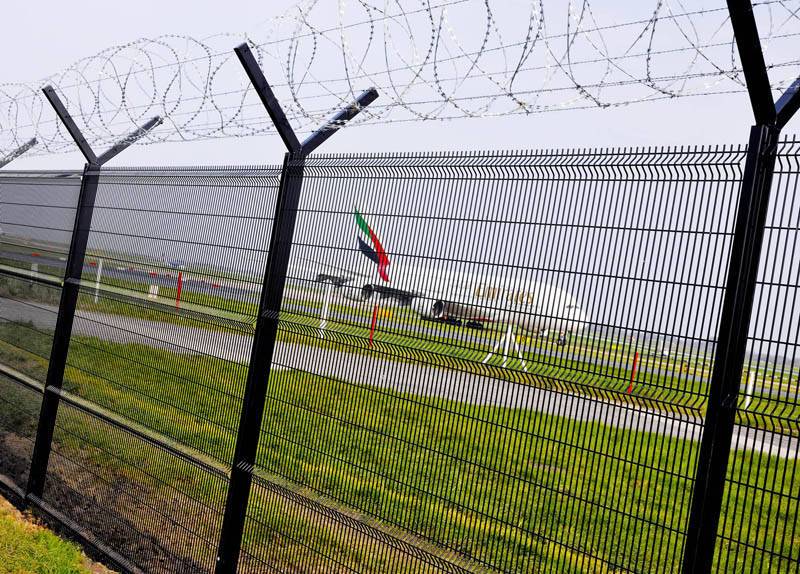

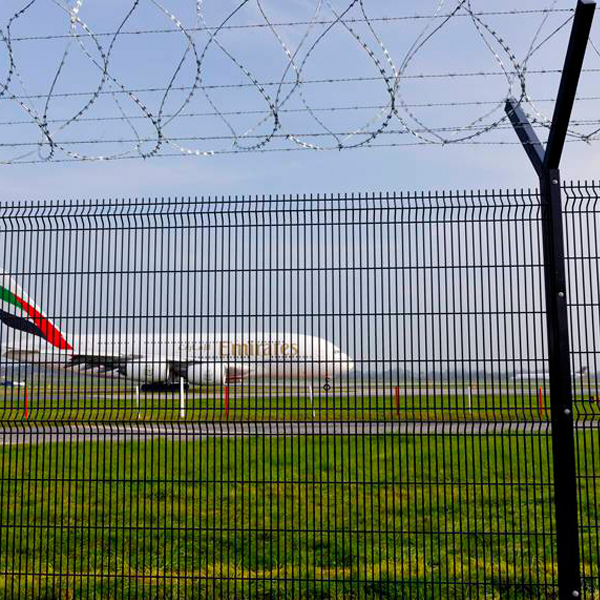

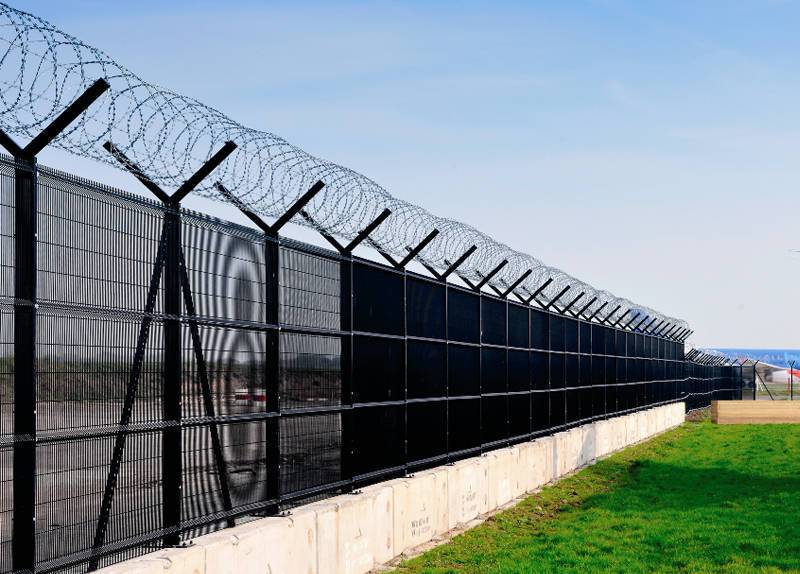

Applications
Airport Security Fence
