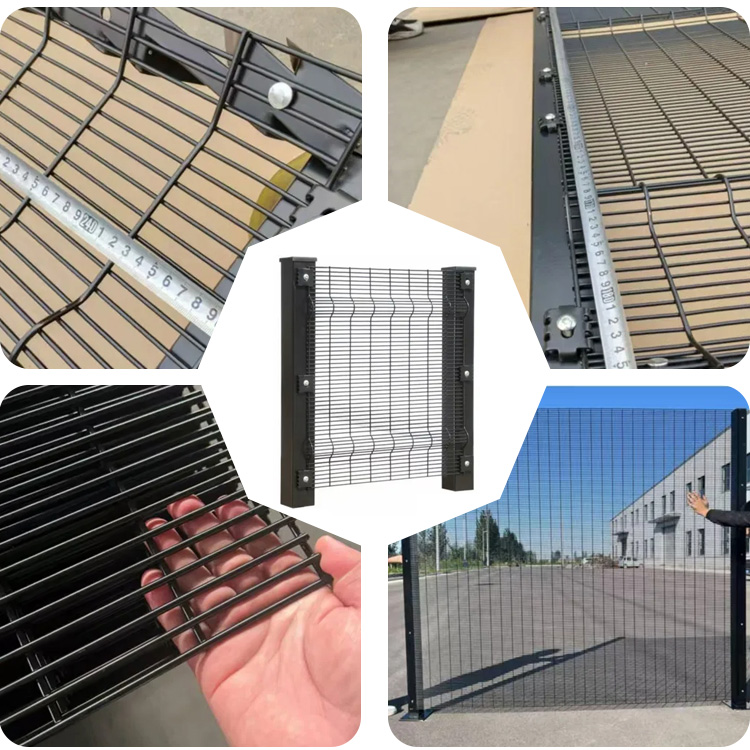

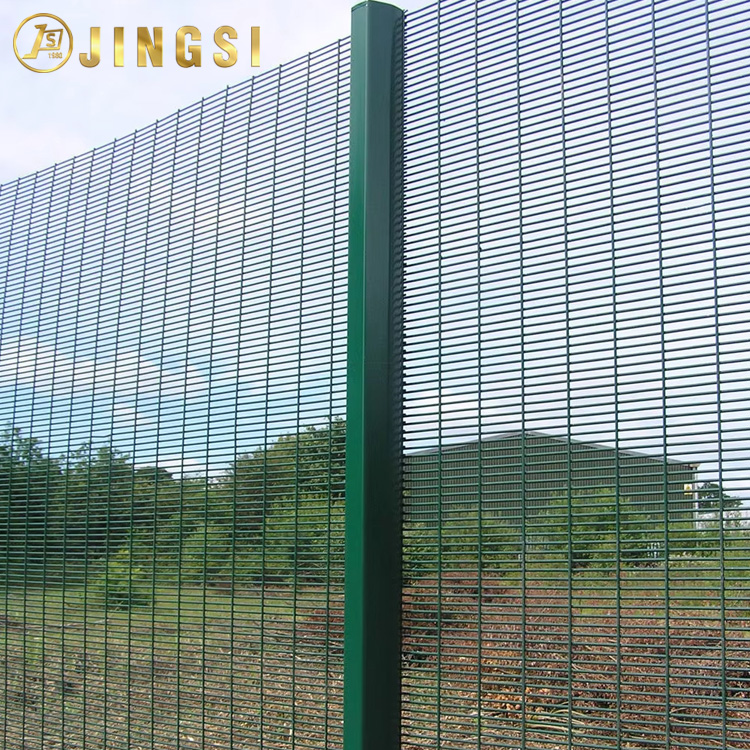

358 Security Fence
Description

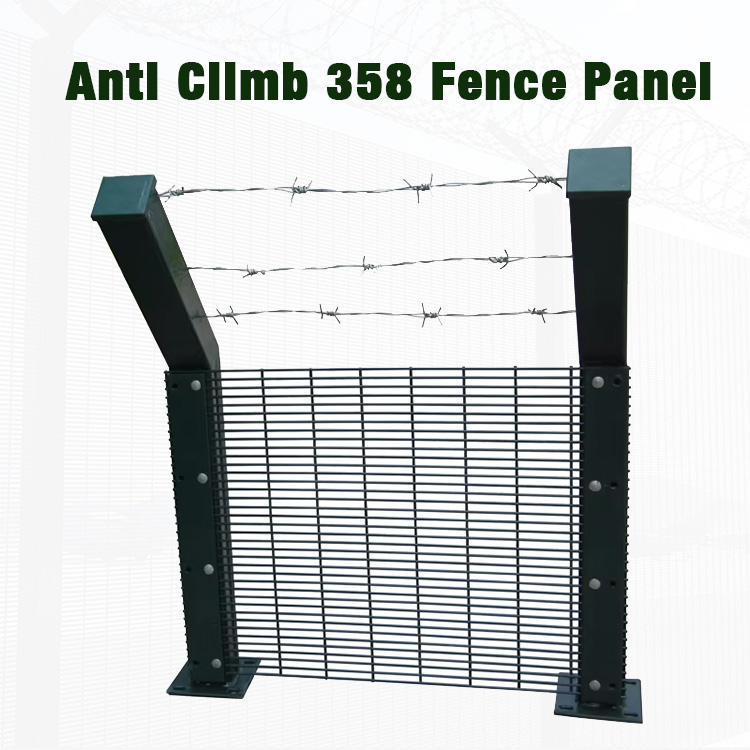

Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
Panel wire: Q195&Q235 Low carbon wire
Post: hot dipped galvanized tube, no coated tube
Bolts: M8 anti-vandal steel or stainless steel
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Color: Green, black, yellow, white,blue, etc.
Processing of welded wire mesh fence:
Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging

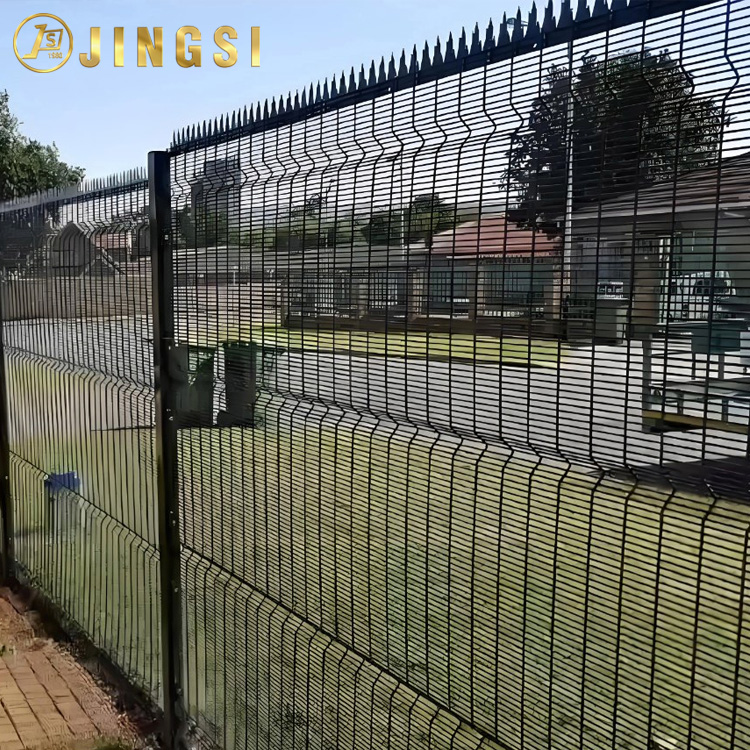

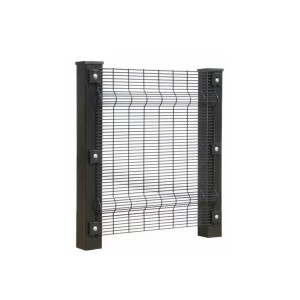

Anti-climbing also have folds for extra strength, I was very popular in South Africa. Horizontal wire with V fold 358 security fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.
Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.
Beautiful appearance - the mesh surface with V folds, two-dimensional three-dimensional, and the perspective is higher.
Specifications

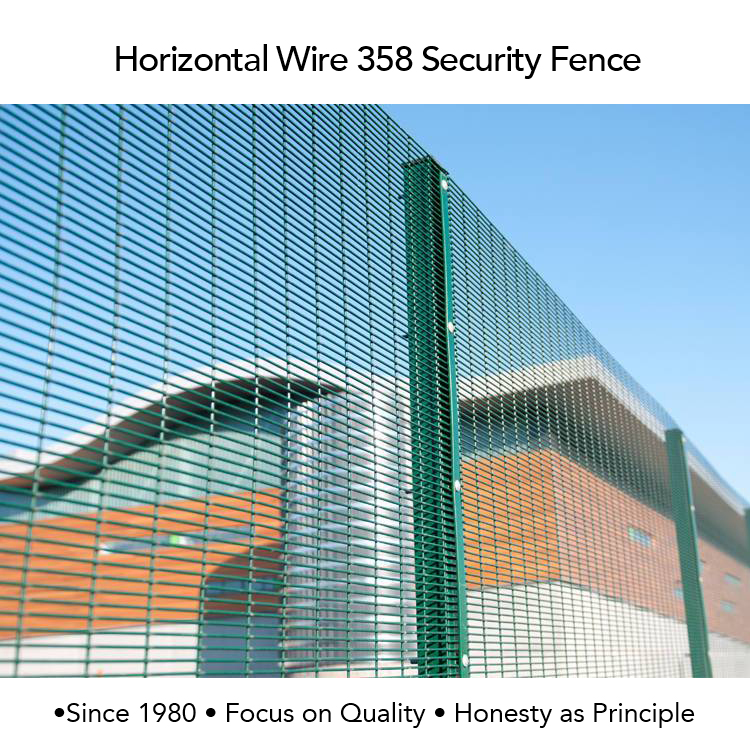

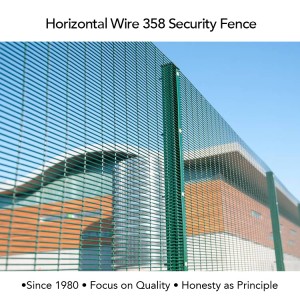

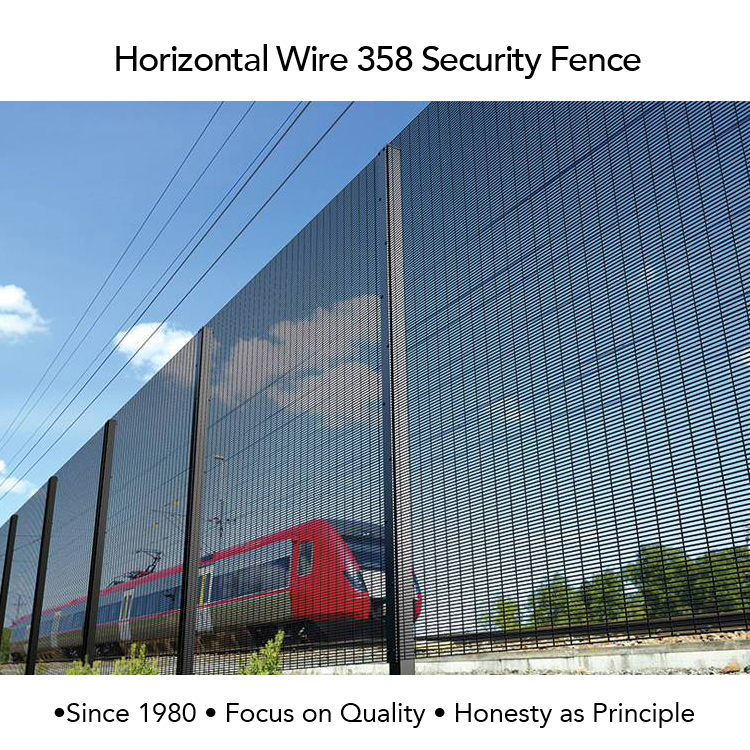

| Horizontal Wire With V Fold 358 Security Fence | ||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | |
| 76.2*12.7mm
(3’’*0.5’’) |
3.0mm or 4.0mm or |
2.0m or 2.50m |
1830mm | 3 |
Square Post(SHS) 50X50x1.5/2.0mm |
Rectangular Post(RHS)
40x60x1.5/2.0mm |

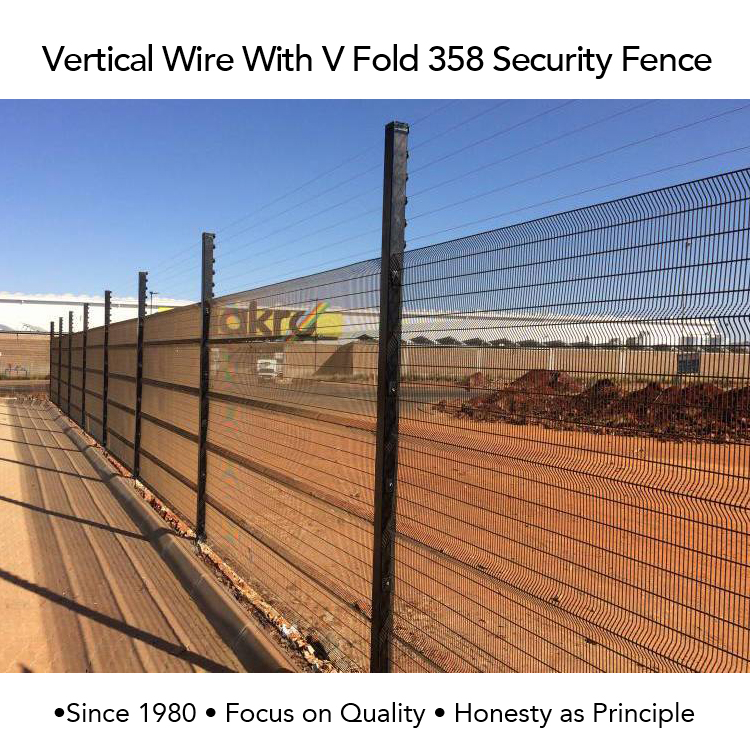

| Vertical wire with V folds 358 Security Fence | ||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | |
| 12.7*76.2mm(0.5’’*3’’) | 3.0mm or 4.0mm or 5.00mm |
2.0m or 2.50m |
1830mm | 3 |
Square Post(SHS) 50X50x1.5/2.0mm |
Rectangular Post(RHS)
40x60x1.5/2.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | ||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | ||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you |
Applications
- Prison security fence.
- Military sites security fence.
- School security fence.
- Warehouse security fence.

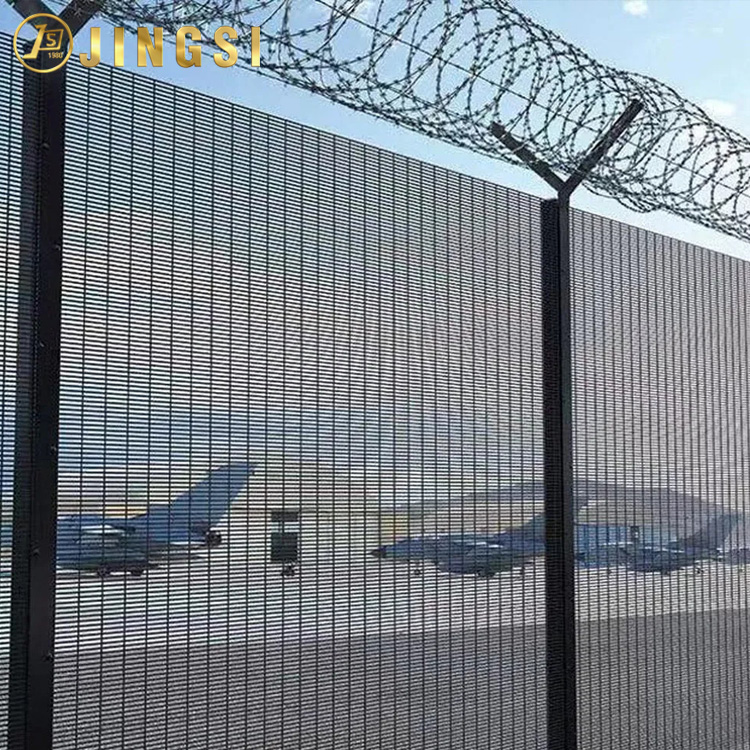

- Airport & seaport security fence.
- Hospital security fence.
- Factory security fence & gate.
- Power station fence.
- Pedestrian bridge screens.
- Walkway security fence.
- Animal enclosure.
