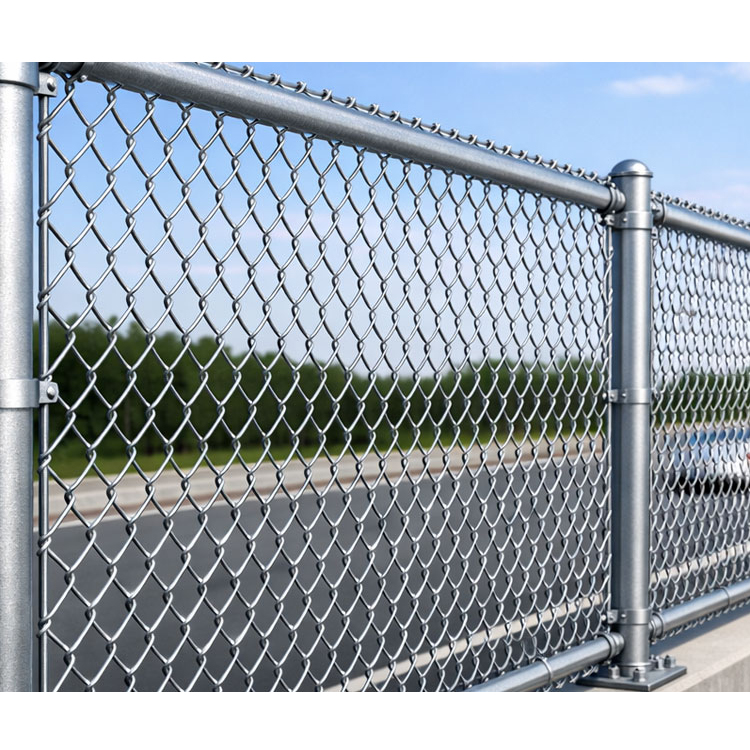

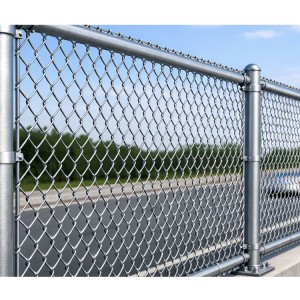

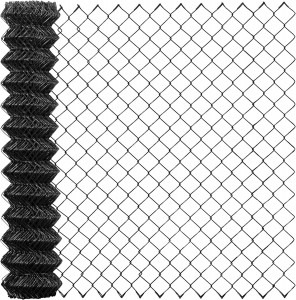

Galvanized Chain Link Fence
Description

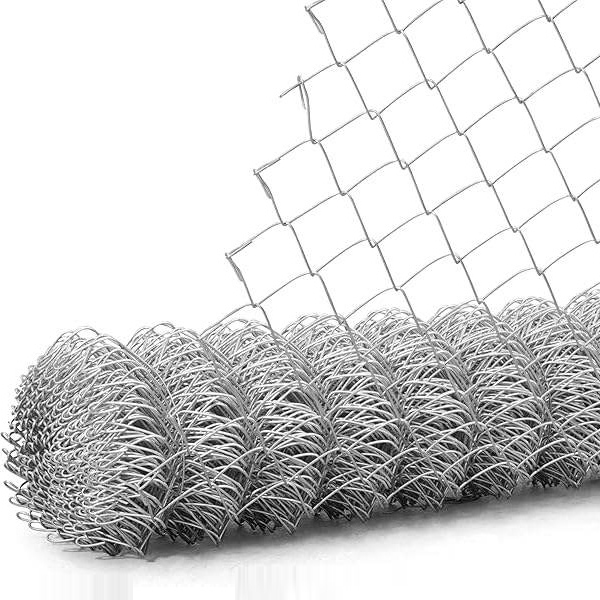

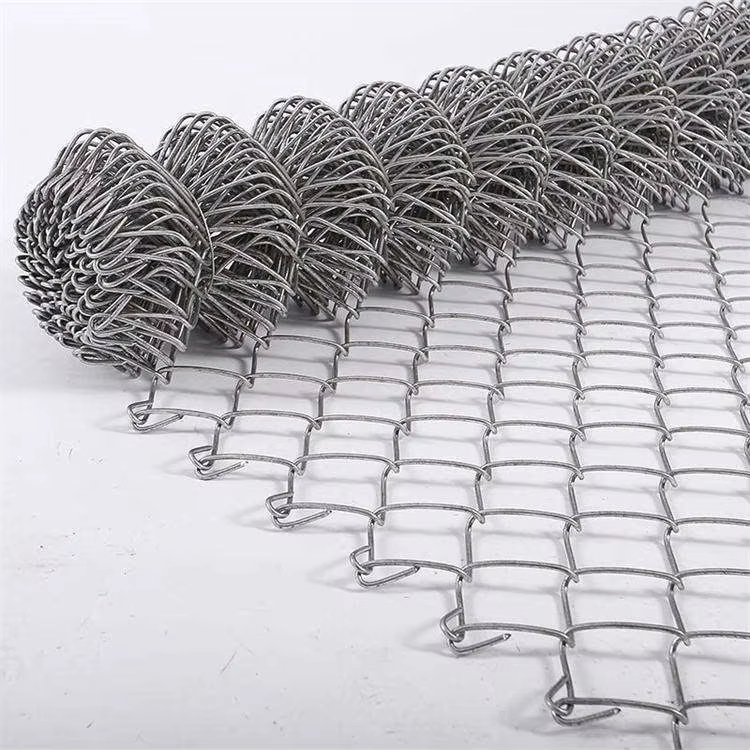

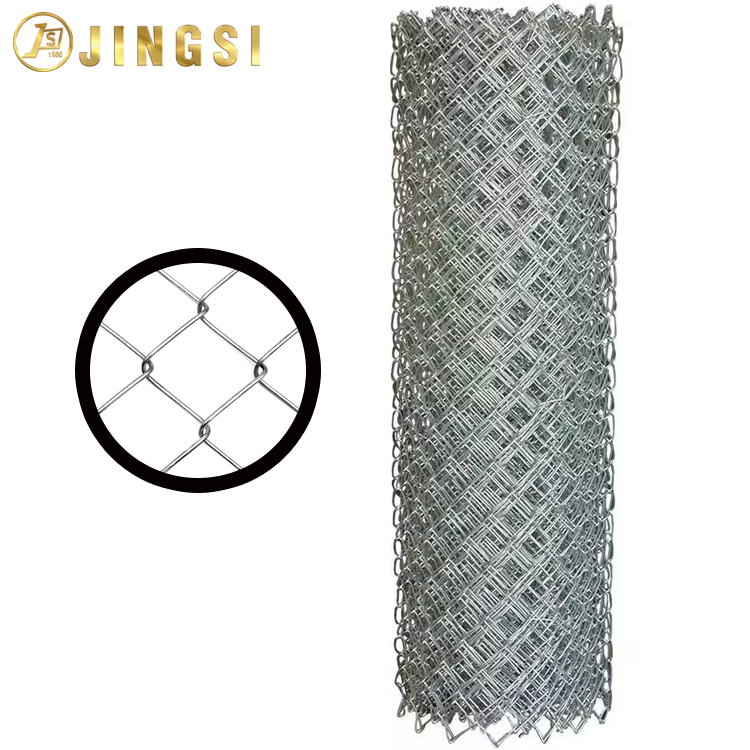

Chain link fence, also known as chain-wire fence, cyclone fence, hurricane fence,Heavy-Duty Galvanized fence,link fenc chain,chain fence, or diamond-mesh fence, is a type of woven fence typically made from galvanized or PVC-coated steel wire. The wires run vertically and are bent into a zig-zag pattern, with each 'zig' hooking with the wire immediately on one side and each 'zag' hooking with the wire immediately on the other. This creates the characteristic diamond pattern seen in this type of fence.
Chain link fence is a versatile fencing option that uses woven steel wire to create panels, making it widely used in various applications.
A metal wire, often galvanized to reduce corrosion, is pulled along a rotating long and flat blade, thus creating a somewhat flattened spiral. The spiral continues to rotate past the blade and winds its way through the previous spiral that is already part of the fence. When the spiral reaches the far end of the fence, the spiral is cut near the blade. Next, the spiral is pressed flat and the entire fence is moved up, ready for the next cycle. The end of every second spiral overlaps the end of every first spiral. The machine clamps both ends and gives them a few twists. This makes the links permanent.

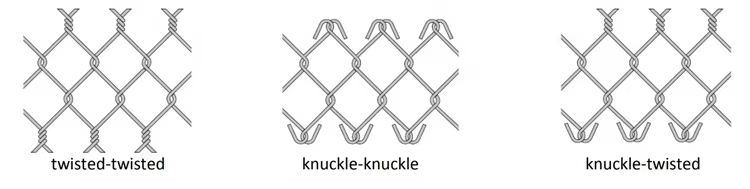

Selvages
wisted-twisted, knuckle-knuckle, knuckle-twisted.
"Knuckle" to avoid sharp ends; "Twisted" for more security.
Specifications
| Mesh opening | 1'' | 1.5'' | 2'' | 2-1/4" | 2-3/8'' | 2-1/2" | 2-5/8" | 3'' | 4'' |
| 25mm | 40mm | 50mm | 57mm | 60mm | 65mm | 70mm | 75mm | 100mm | |
| Wire diameter | 18Ga - 13Ga | 16Ga - 8Ga | 14Ga-6Ga | ||||||
| 1.2mm-2.4mm | 1.6mm - 4.2mm | 2.0mm-5.00mm | |||||||
| Width of per roll | 50M - 100M(or more) | ||||||||
| Length of per roll | 0.5M - 6.0M | ||||||||

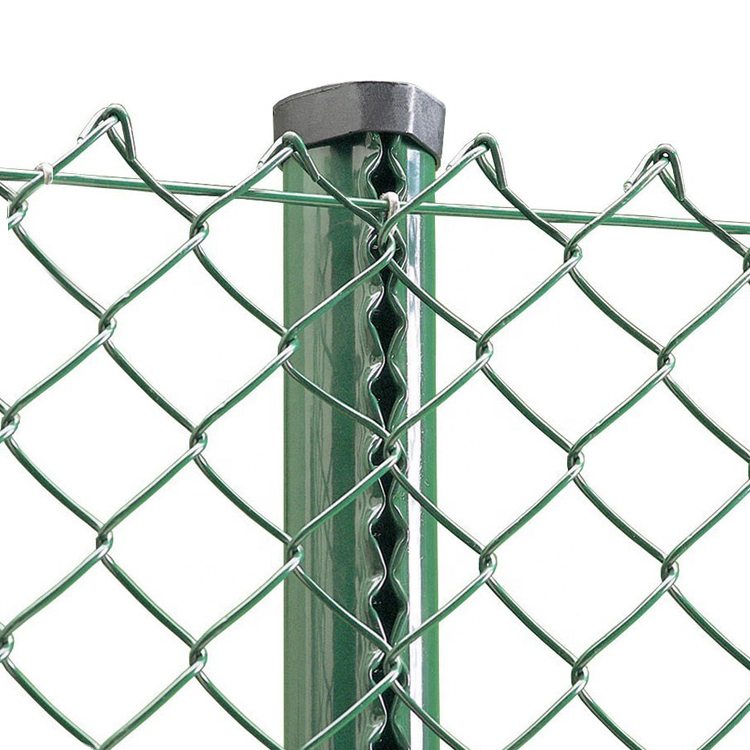

| Round post & rail diameter | 32mm, 42mm,48mm,60mm,76mm,89mm | ||||||||
| Round post & rail thickness | 0.8-5.0mm | ||||||||
| Surface treatment | Hot dipped galvanized or PVC coated | ||||||||
| Materials and specification can be made according to customer detailed requirements | |||||||||
Feature
- Beautiful make-up that is more attractive than a wall boundary when securing your fortress.
- Vision barrier-free and good air flow ensures property in sight and beautiful view enjoyment.
- Open and transparent, do not obscure sunlight from either side of the fence.
- Against the invaders to ensure property safety.
- A variety of styles with different heights.

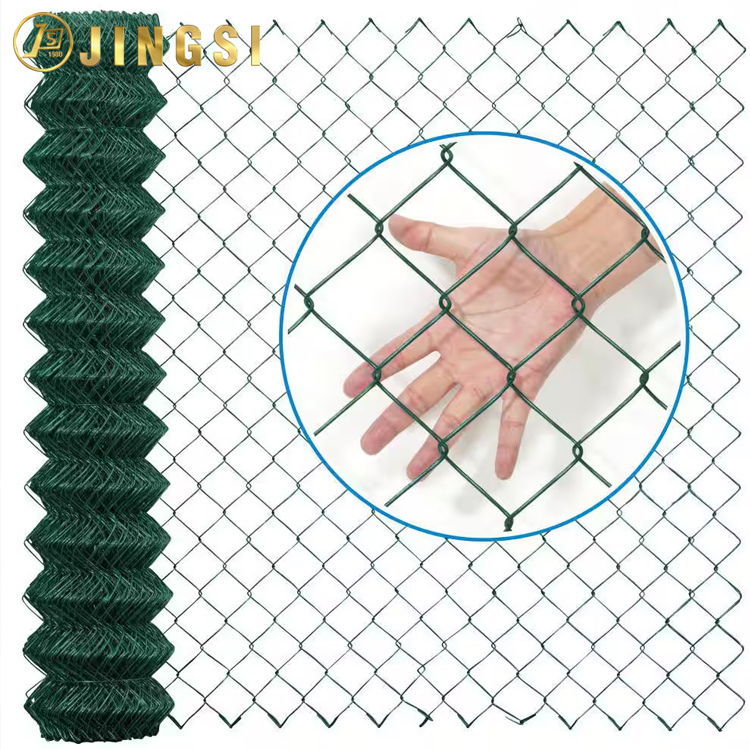

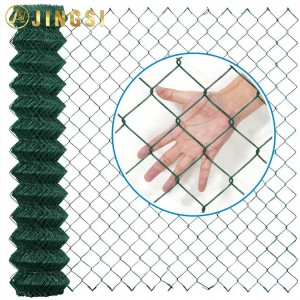

- Available coated in PVC or galvanized finishes.
- Weather resistant and durable.
- Quality guaranteed at an affordable rate.
- Removable to define a new perimeter when needed, and repeated use is achieved within your budget.
- Meet or exceeds ASTM standards.
- Easy to install and low maintenance.
Applications
Our heavy-duty 9 gauge chain link fence is often found in the following applications:
• High Quality Residential Projects
• Self-Storage Facilities
• Dog Boarding and Breeder Kennel Facilities
• Playgrounds, Day Care Facilities, and Churches
• Schools, Universities, and Parks

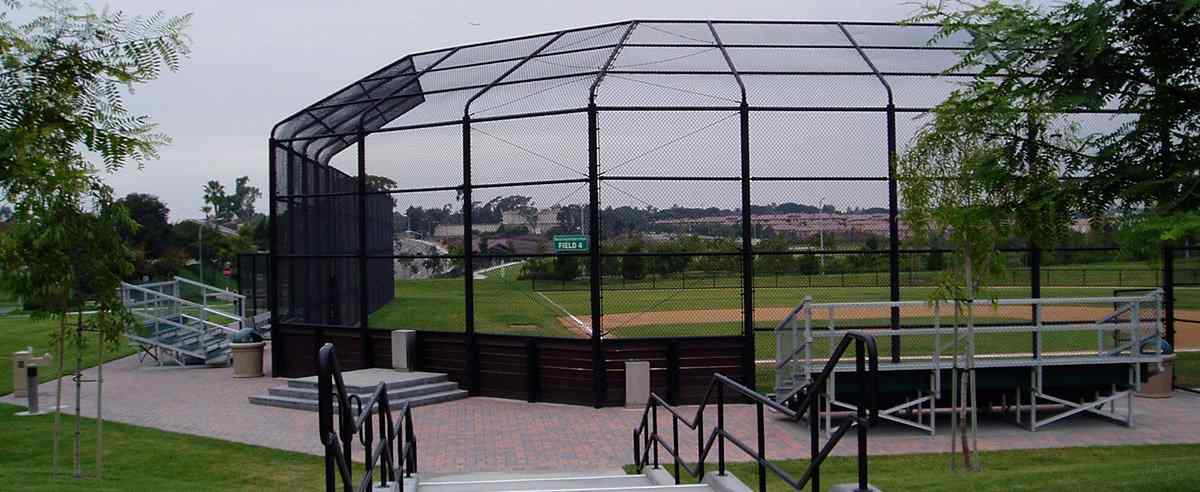

• Baseball Backstops, Sideline, and Homerun Fences

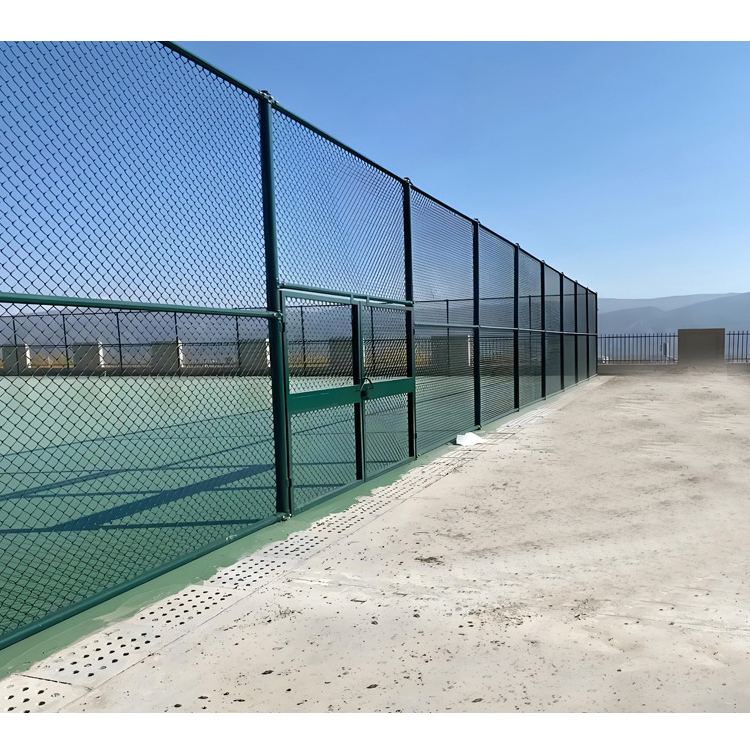

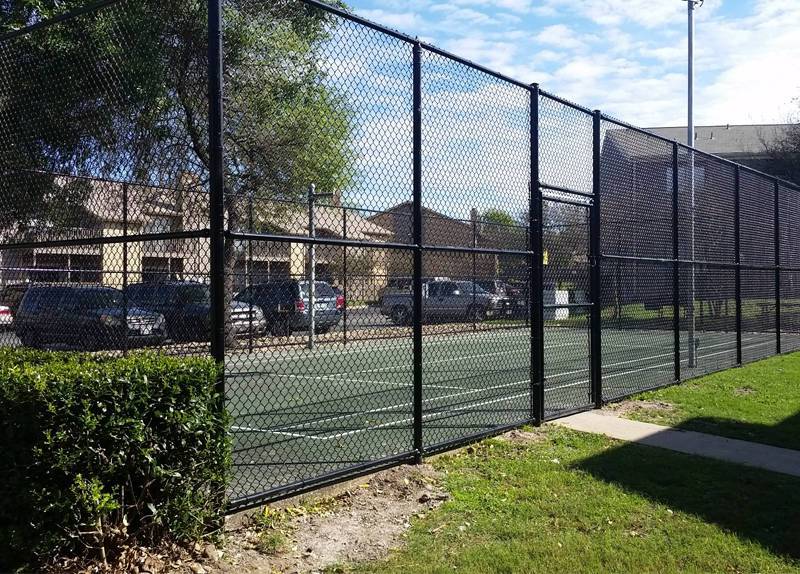

• Tennis Courts
• Small and Large Businesses

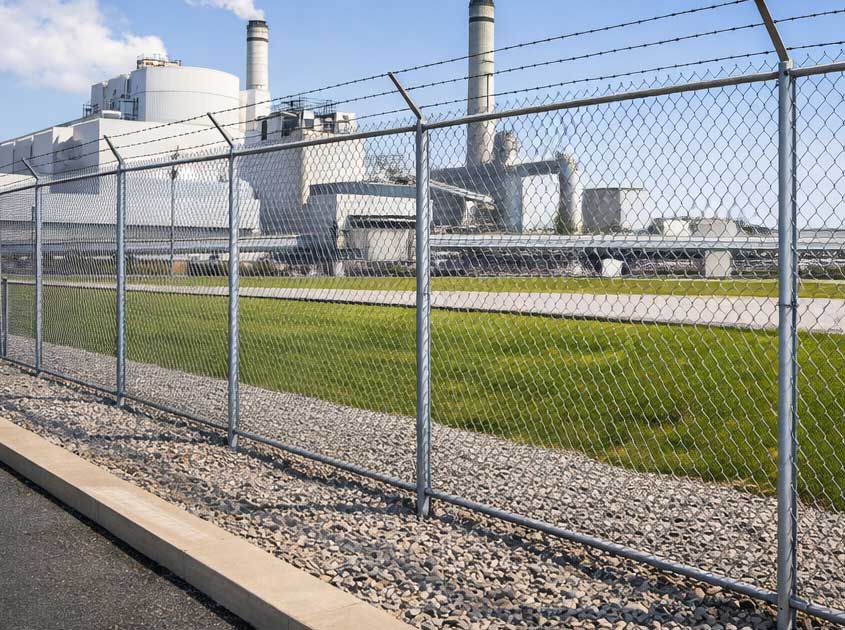

• Fencing for the Oil and Gas Industry

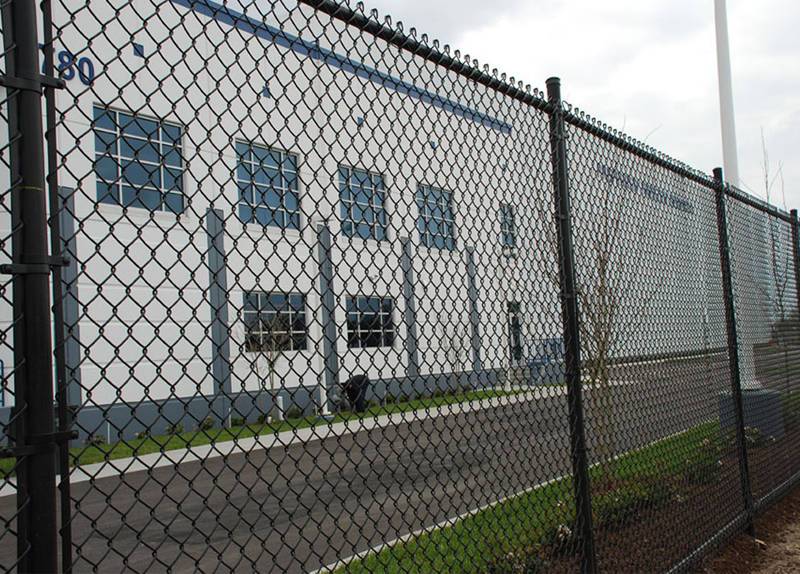

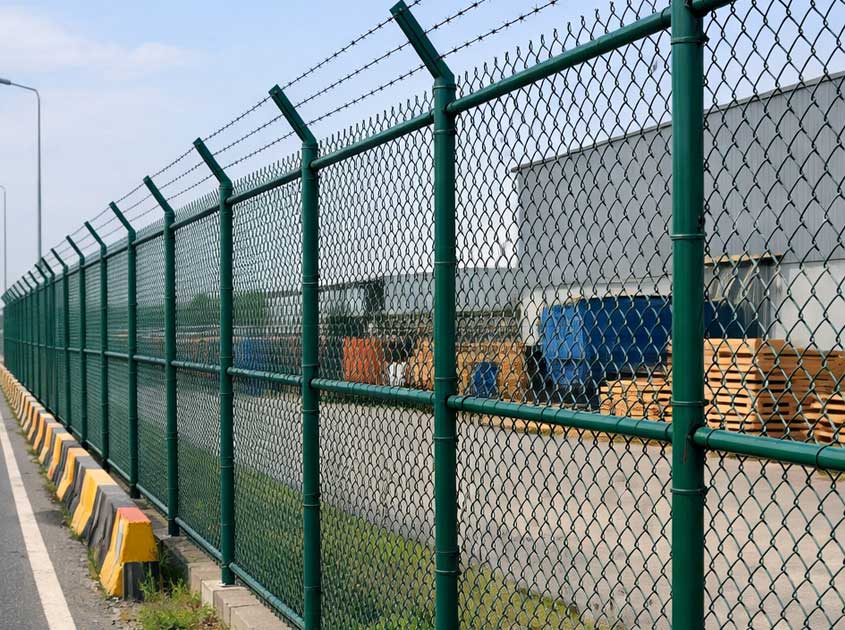

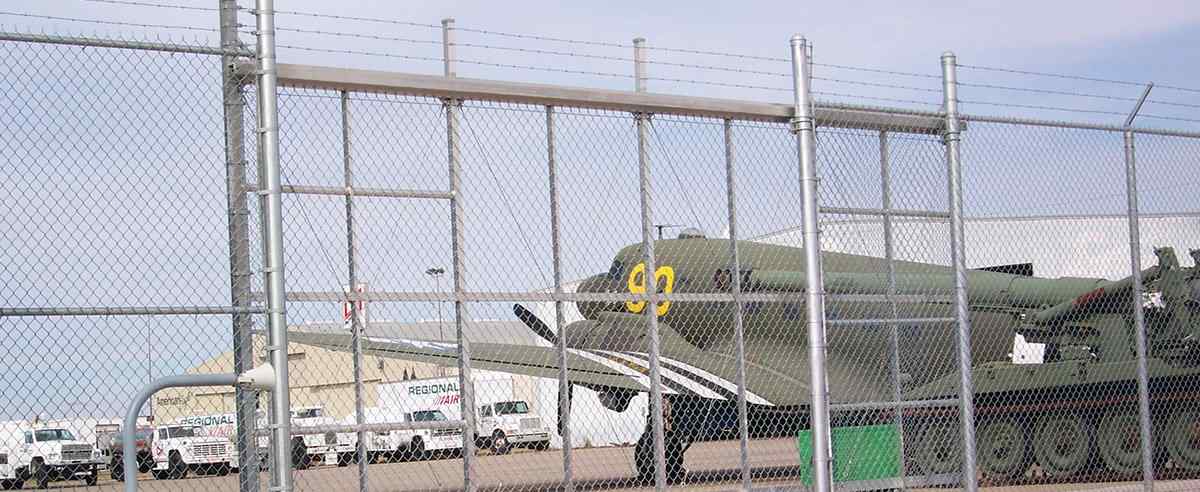

• Federal and State Prisons, Airports, and other High Security Projects
