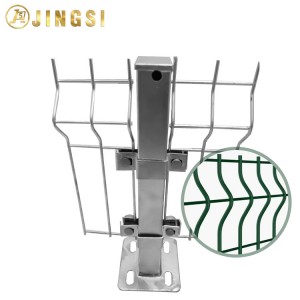

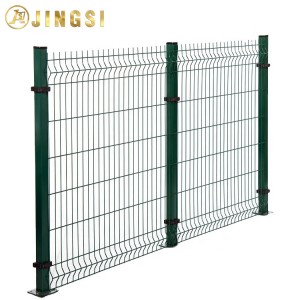

3d Curved Welded Wire Mesh Fence
Description
Welded Wire Mesh Fence Panels, also known as curvy welded fencing, 868 Fence,folded wire fence,triangle mesh fence, 3D fence, and more, are lightweight yet durable fencing options. They are composed of wires welded together to form a fence. Welded wire mesh fence can undergo various surface treatments, including hot-dipped galvanization, PVC coating, and powder coating.
Wire Panels are a type of welded wire mesh that features V-shaped strengthening bending curves. They are made from high-quality low carbon steel wire, often galvanized and further treated with hot-dip galvanization, powder coating, or PVC coating. Welded Wire Panel Fence has a modern and attractive appearance.
Characteristic
| Welded Wire Mesh Fence(3D) | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm etc. |
3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm |
2.0m or 2.50m or 2.9m |

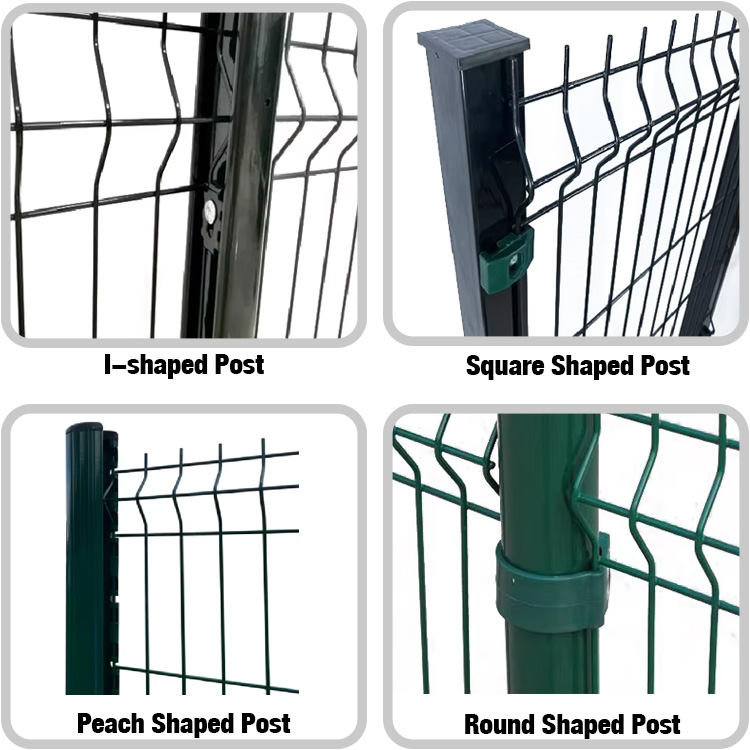

630mm | 2 | Round Post
48x1.5/2.0mm |

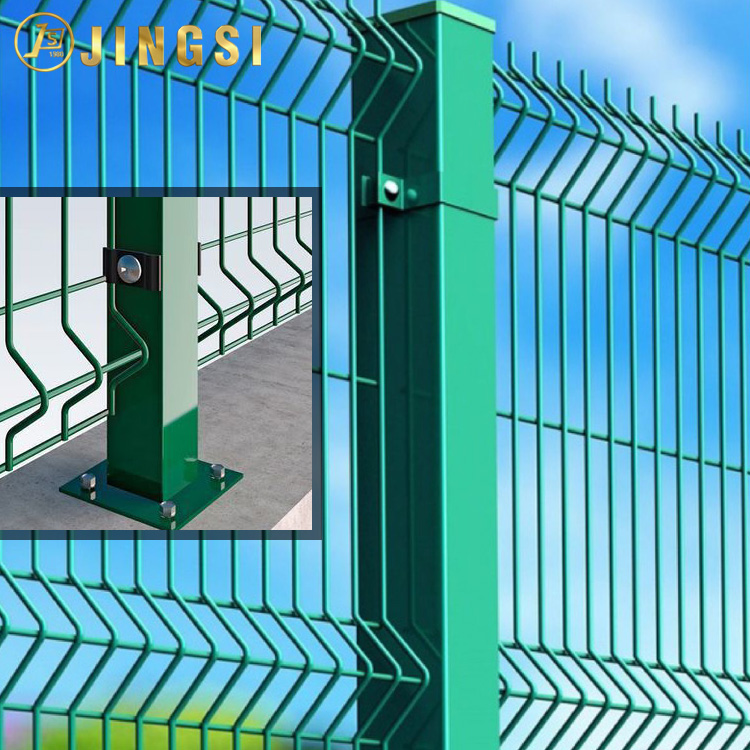

Square Post(SHS) 50X50x1.5/2.0mm |
Rectangular Post(RHS)
40x60x1.5/2.0mm |
| 830mm | 2 | ||||||
| 1030mm | 2 | ||||||
| 1230mm | 2 | ||||||
| 1430mm | 2 | ||||||
| 1530mm | 3 | ||||||
| 1630mm | 3 | ||||||
| 1730mm | 3 | ||||||
| 1830mm | 3 | ||||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | |||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | |||||||
Applications

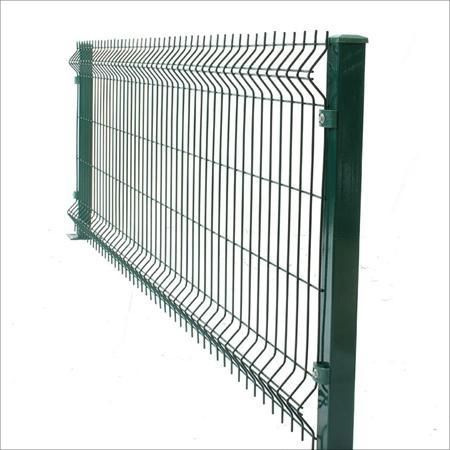

Welded Wire Mesh Fence Panels

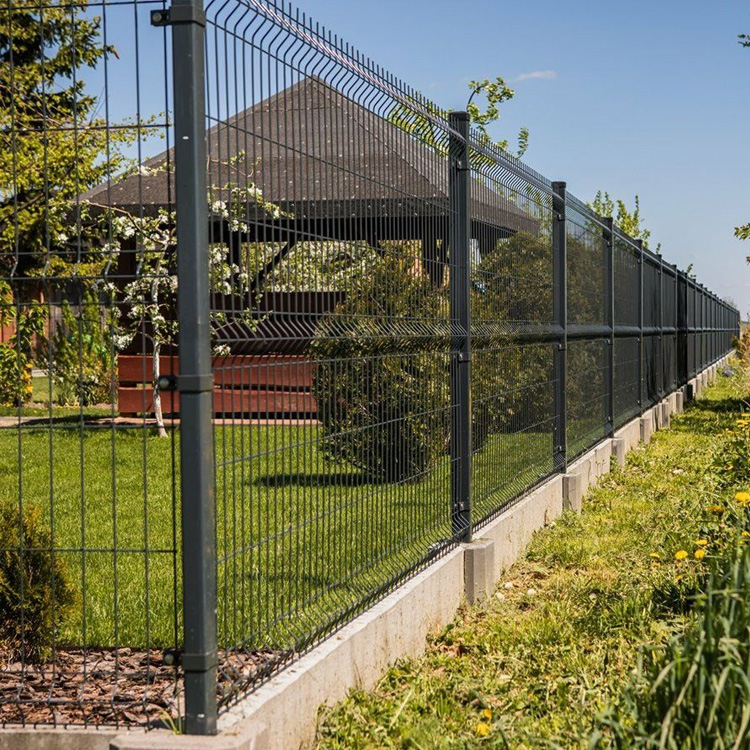

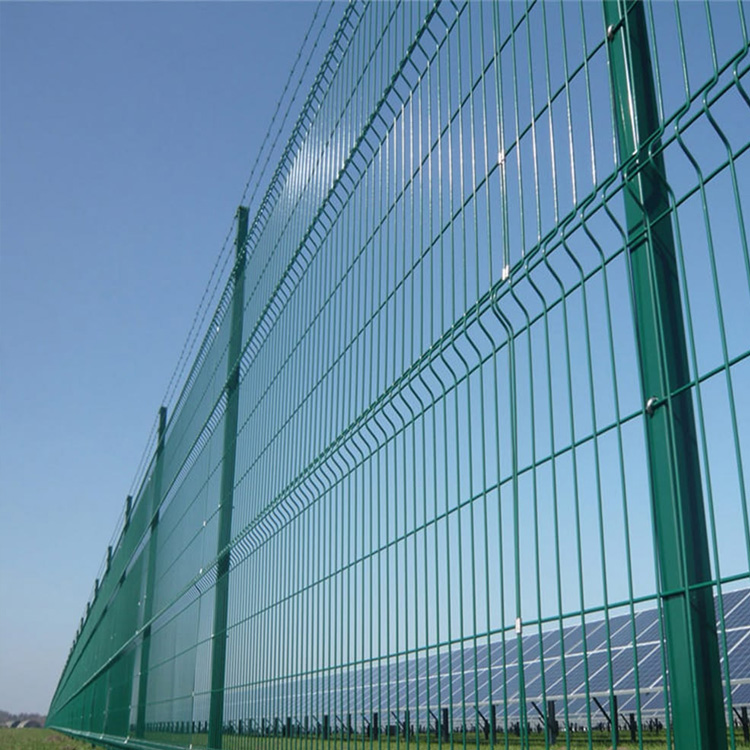

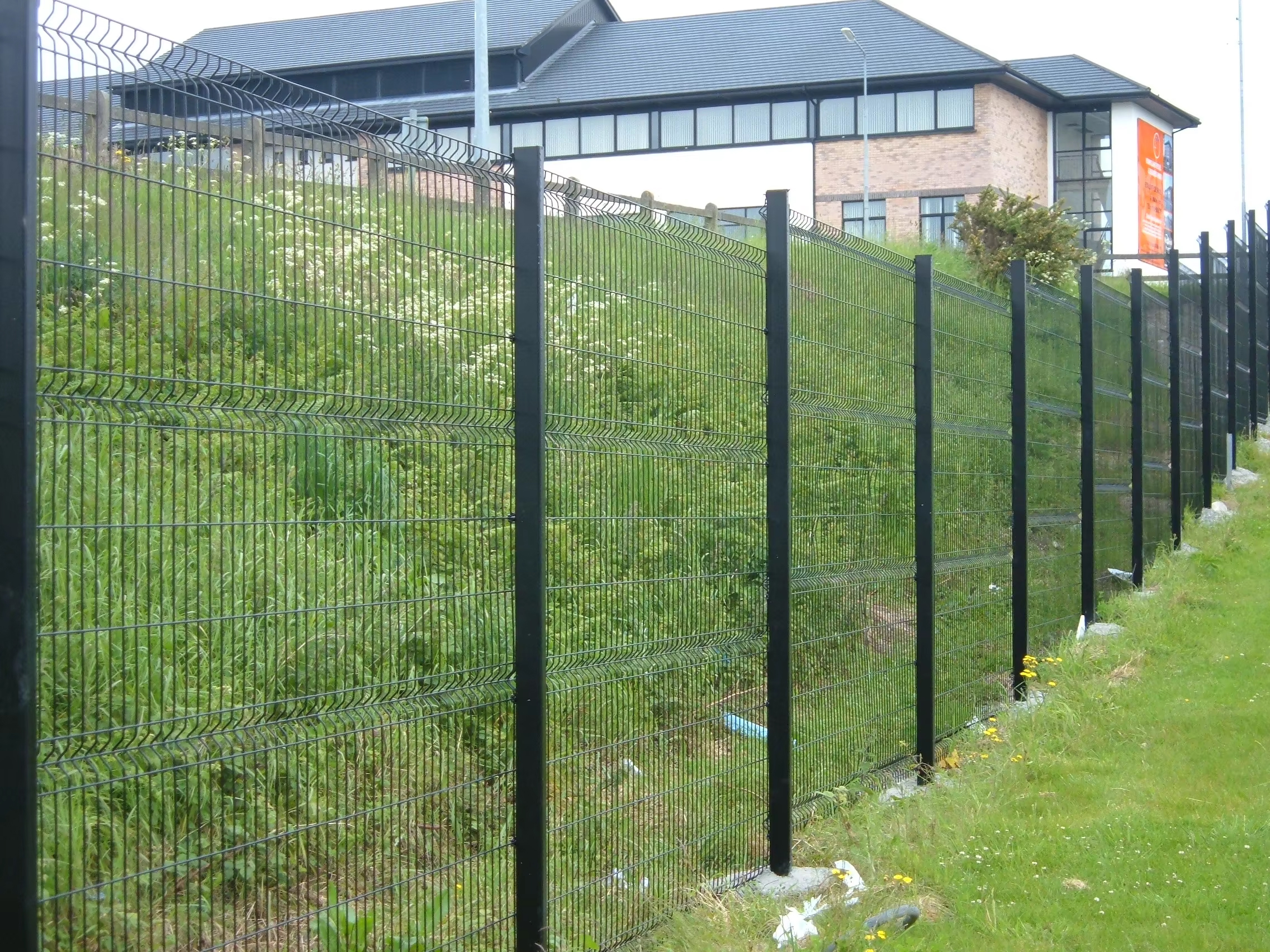

It is primarily used for security protection in construction sites, residential buildings, sports fields, warehouses, highway or airport service areas, railway stations, and more.
