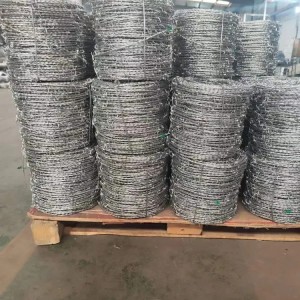

Barbed Wire
Description

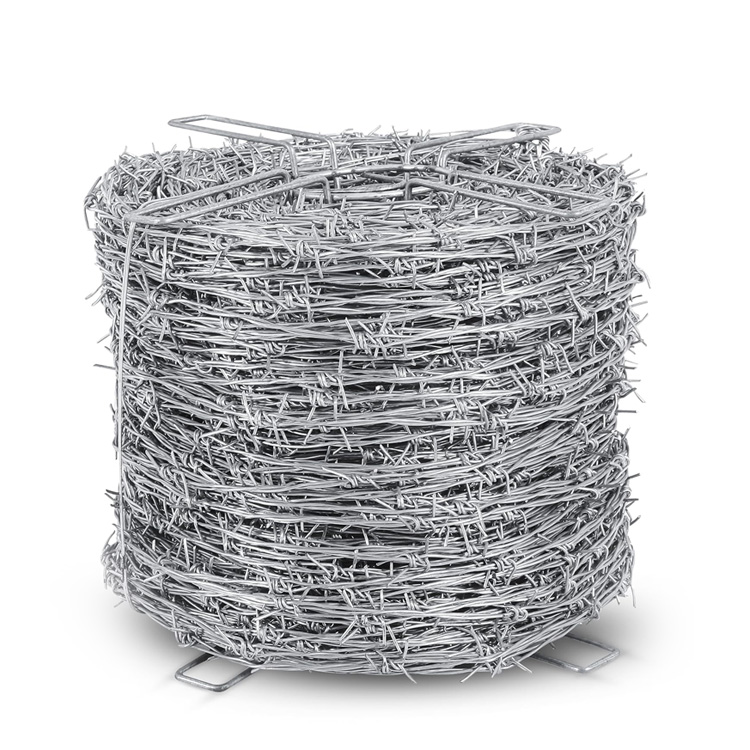

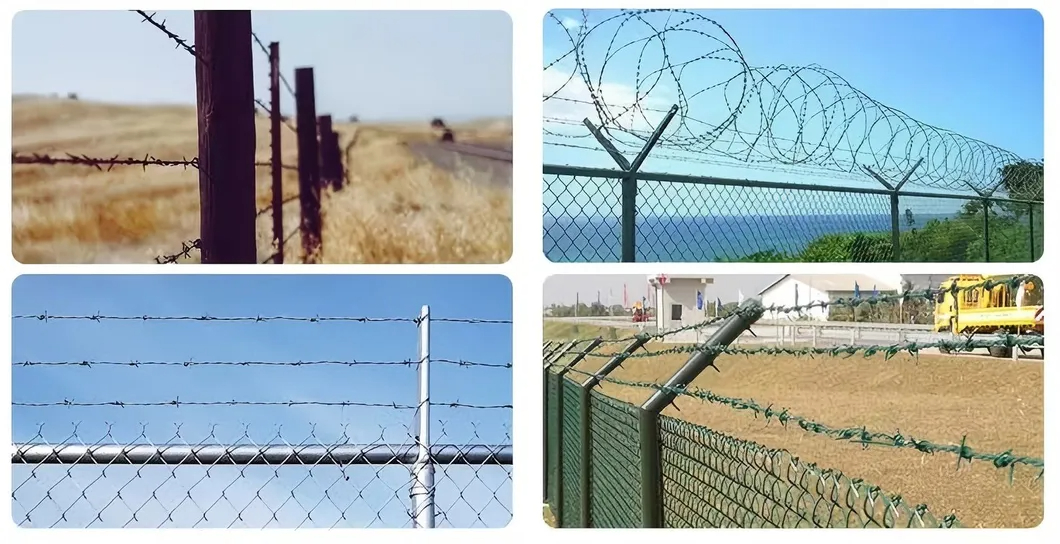

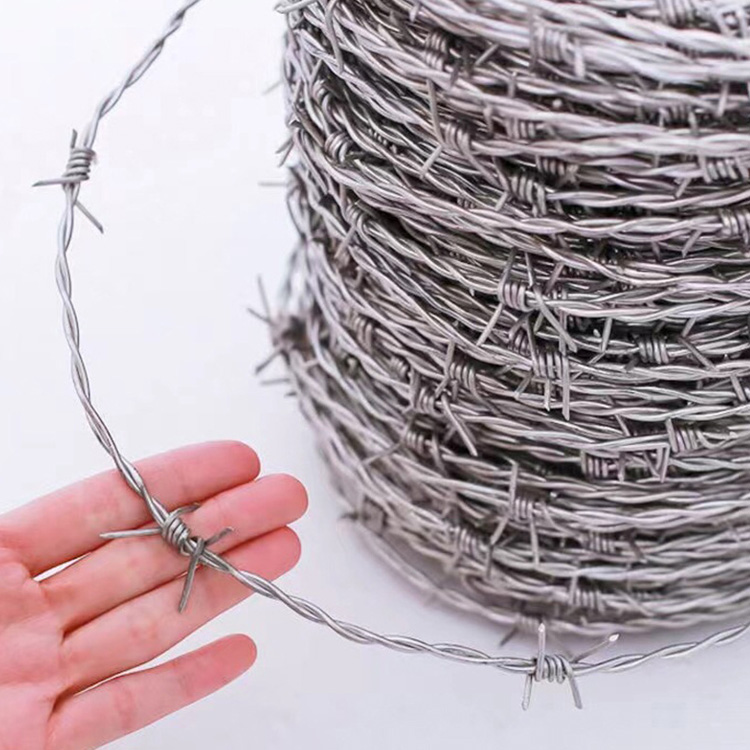

Barbed wire, also known as bob wire, is the most important component of barbed wire fence system. It can be used individually to form the barbed wire fence, and it also can be attached onto various fences, such as chain link fence, welded wire mesh fence, expanded mesh fence or palisade fence for high level security barrier. With the features of sharp edge, high tensile strength and corrosion, rust resistance, they are widely used for prison fencing, airport fencing, farm fencing, ranch fencing, residence fencing, large construction site fencing and so on.
Specifications
| Galvanized barbed wire | ||||
| Wire Diameter(BWG) | Length(meters) per Kg | |||
| Barb distance3” | Barb distance4” | Barb distance5” | Barb space6” | |
| 12 x 12 | 6.06 | 6.75 | 7.27 | 7.63 |
| 12 x 14 | 7.33 | 7.90 | 8.30 | 8.57 |
| 12.5 x 12.5 | 6.92 | 7.71 | 8.30 | 8.72 |
| 12.5 x 14 | 8.10 | 8.81 | 9.22 | 9.562 |
| 13 x 13 | 7.98 | 8.89 | 9.57 | 10.05 |
| 13 x 14 | 8.84 | 9.68 | 10.29 | 10.71 |
| 13.5 x 14 | 9.60 | 10.61 | 11.47 | 11.85 |
| 14 x 14 | 10.45 | 11.65 | 12.54 | 13.17 |
| 14.5 x 14.5 | 11.98 | 13.36 | 14.37 | 15.10 |
| 15 x 15 | 13.89 | 15.49 | 16.66 | 17.50 |
| 15.5 x 15.5 | 15.34 | 17.11 | 18.40 | 19.33 |

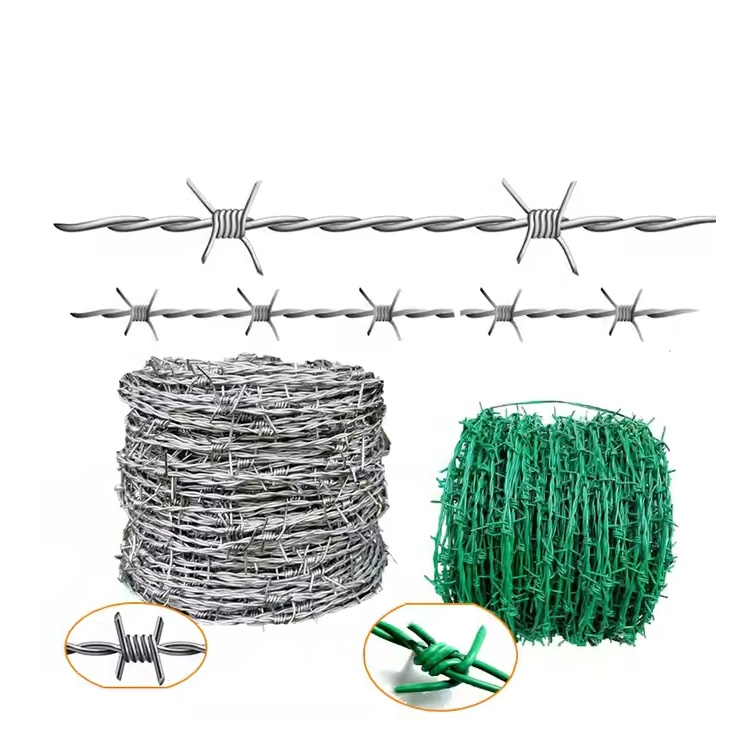

| PVC Coated barbed wire | |||
| Wire Diameter | Barbs’ distance | Barb length | |
| Before coating | After coating | 75mm - 150mm | 15mm - 30mm |
| 1.0mm - 3.5mm | 1.4mm - 4.0mm | ||
| BWG20 - BWG11 | BWG17 - BWG8 | ||
| PVC coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request | |||
Feature
- • Sharp edge frightens intruders and thieves.
- • High stability, rigidity, and tensile strength to prevent cutting or destroying.
- • Anti-acid and alkali.
- • Harsh environment resistance.
- • Corrosion and rust resistance.
- • Available to combine with other fences for high level security barrier.
- • Convenient installation and uninstallation.
- • Easy to maintain.
- • Durable and long service life.

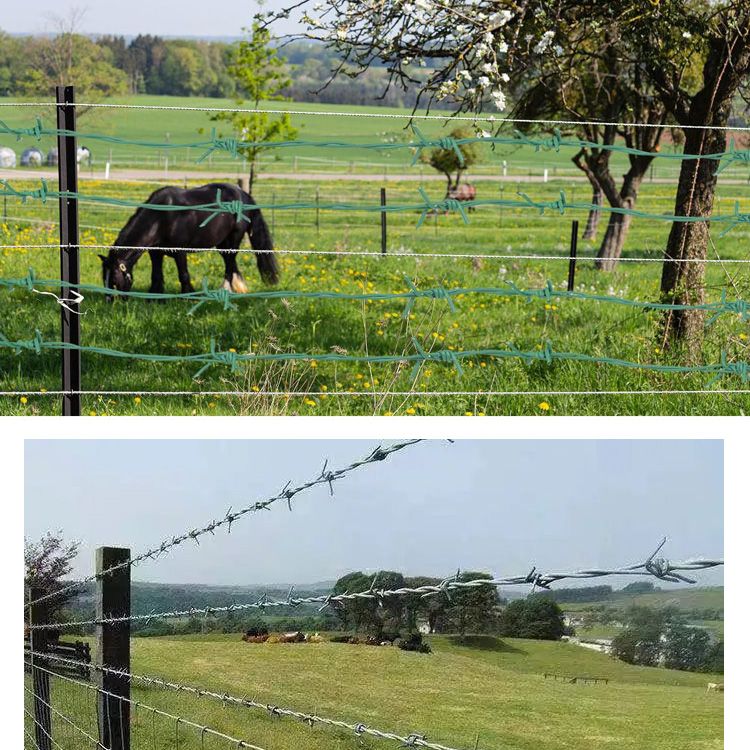

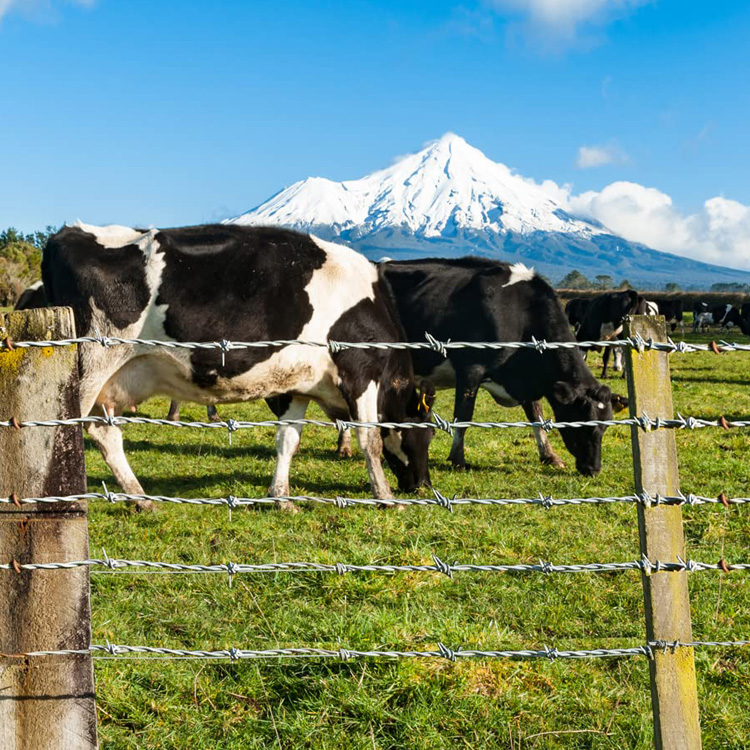

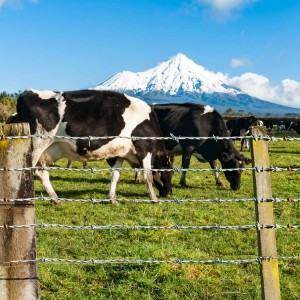

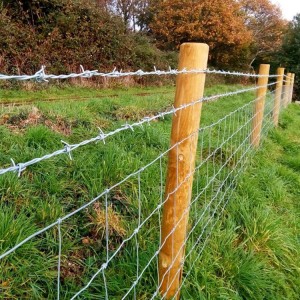

Applications
border fence, oil field fence, prison fence
