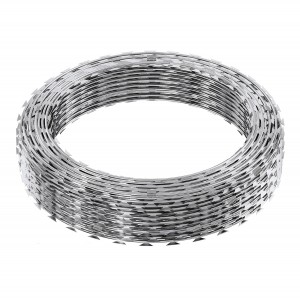

Stainless Steel Razor Wire

Short Description:

Specification of Razor blade wire:

1,Normal hot dipped galvanized razor wire(40-60g)

2,Heavily zinc coated razor wire (70-270g)

3,Stainless steel 304 or316 grades razor wire

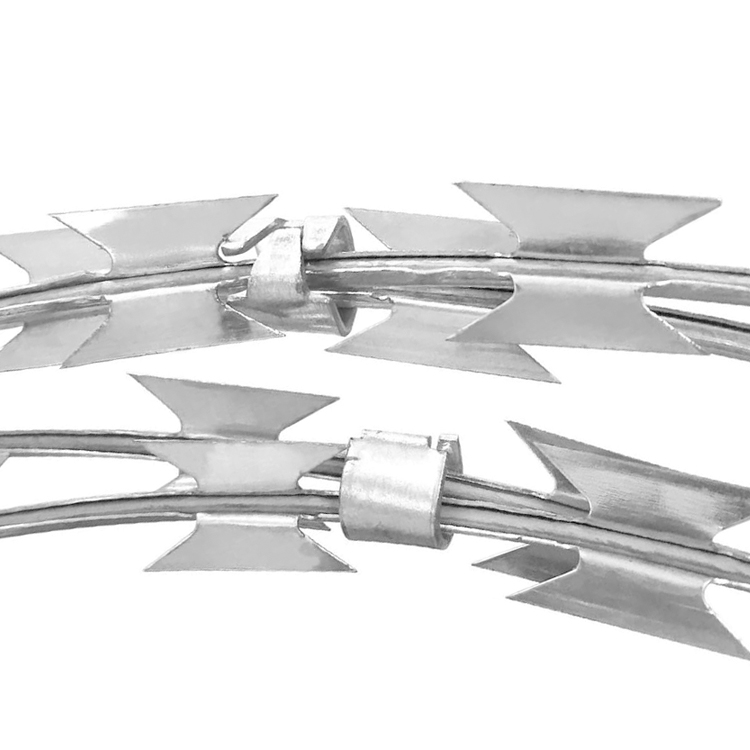

Clips of concertina wire:   3clips, 5clips or without clips

Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm


Product Detail

Product Tags

Description

Razor Type: BTO-10, BTO-15, BTO-22, BTO-30, CBT-60, CBT-65.

Material of razor blade:  hot dipped galvanized, stainless steel 304, 316

Material of Razor wire:  hot dipped galvanized wire or stainless steel wire

Razor wire coil diameter: 400mm, 450mm, 500mm,600mm, 1000mm as you

Razor wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.The wire and strip are galvanized to prevent corrosion.

Razor wire, often referred to as barbed tape, is a modern version and great alternative to traditional barbed wire, which is designed to prevent unauthorized intrusion along perimeter barriers. It is fabricated from high tensile wire onto which a multitude of razor-sharp barbs are formed at close and uniform intervals. Its sharp barbs act as both visual and psychological deterrent, making it ideal for industries such as commercial, industrial, residential and governmental areas.





Specifications

Specifications of Razor wire
The Coil Diameter No. of loops Length per coil Razor Wire Types Notes
450mm 33 7-8m CBT-60.65 single coil
500mm 56 12-13m CBT-60.65 single coil
700mm 56 13-14m CBT-60.65 single coil
960mm 56 14-15m CBT-60.65 single coil
450mm 56 8-9m(3 clips) BTO-10.12.18.22.28.30 cross type
500mm 56 9-10m (3clips) BTO-10.12.18.22.28.30 cross type
600mm 56 10-11M (3 clips) BTO-10.12.18.22.28.30 cross type
600mm 56 8-10M (5clips) BTO-10.12.18.22.28.30 cross type
700mm 56 8-10M (5 clips) BTO-10.12.18.22.28.30 cross type
800mm 56 11-13M (5 clips) BTO-10.12.18.22.28.30 cross type
900mm 56 12-14M (5 clips) BTO-10.12.18.22.28.30 cross type
960mm 56 13-15M (5 clips) BTO-10.12.18.22.28.30 cross type



Razor wire type
Reference Number Blade Style Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28   0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 40±1
CBT-60 0.6±0.05 2.5±0.1 65±2 21±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Applications

Concertina Razor Wire

• Borders                                           • Military Bases                                           • Prisons
• Airports                                           • Government agencies                              • Mines
• Explosives storage                         • Farms                                                       • Residential areas
• Railway barrier                              • Seaports                                                    • Embassies
• Water reservoirs                            • Oil depots                                                  • Gardens
• Substations

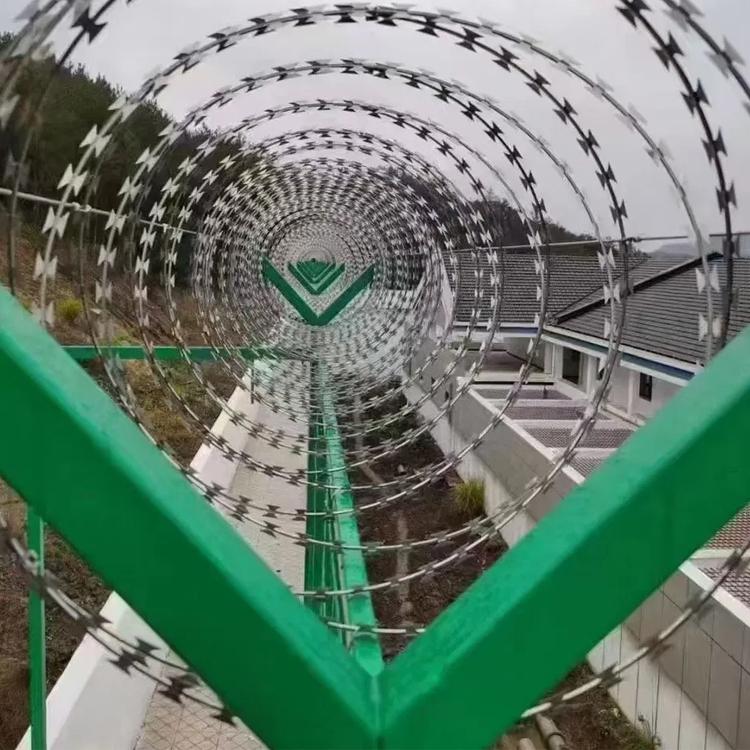

Airport Security Fence
Airport Security Fence (5)

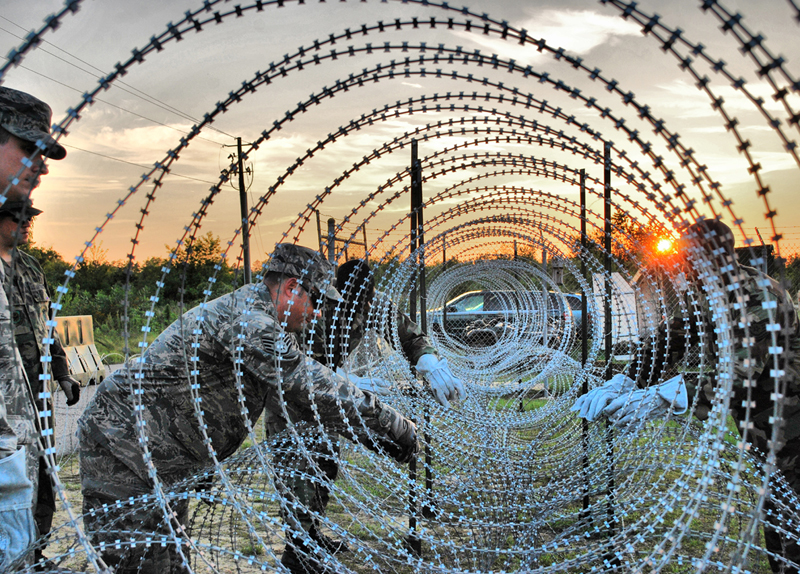

Airmen from the 621st Contingency Response Wing at McGuire Air Force Base, N.J., construct razor wire fences around their camp perimeter June 24 during a noncombatant evacuation exercise at Mackall Army Airfield, N.C.  CRW Airmen manned defensive fighting positions as the exercise scenario became "hostile." (U.S. Air Force photo/Staff Sgt. Nicholas Phelps)

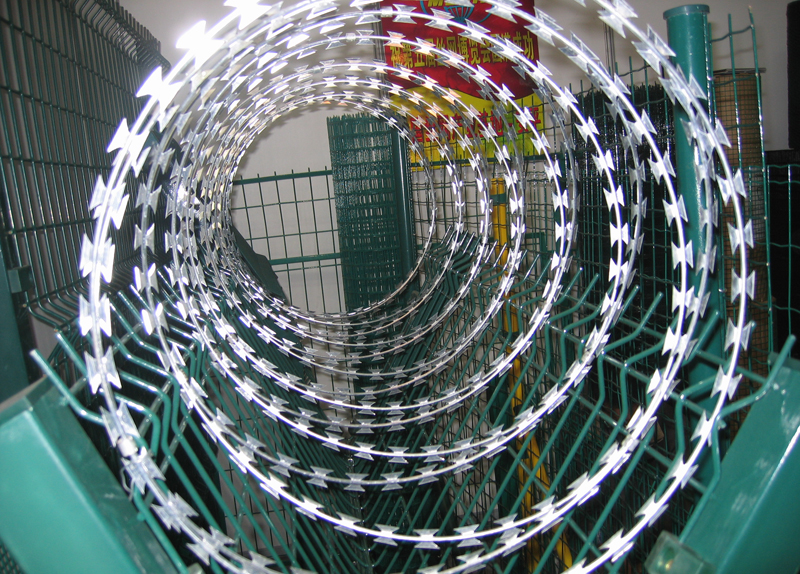

Concertina Razor Wire (1)

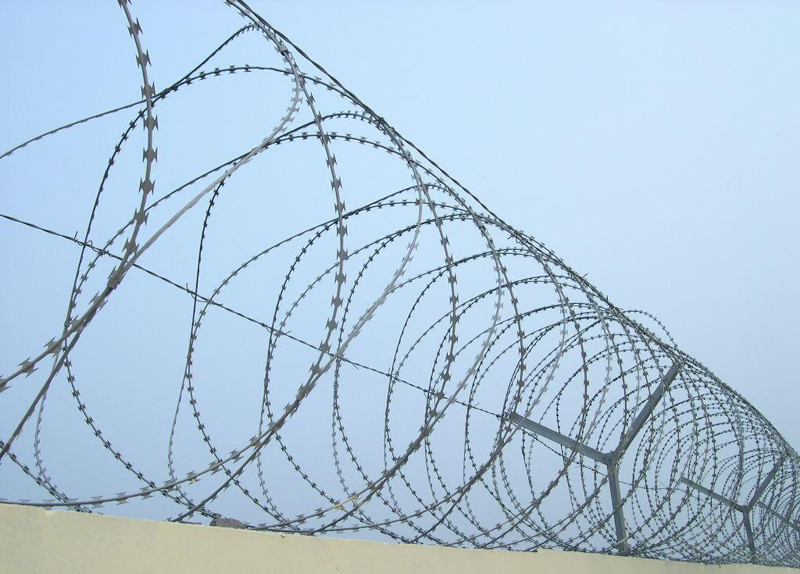

Concertina Razor Wire (4)
