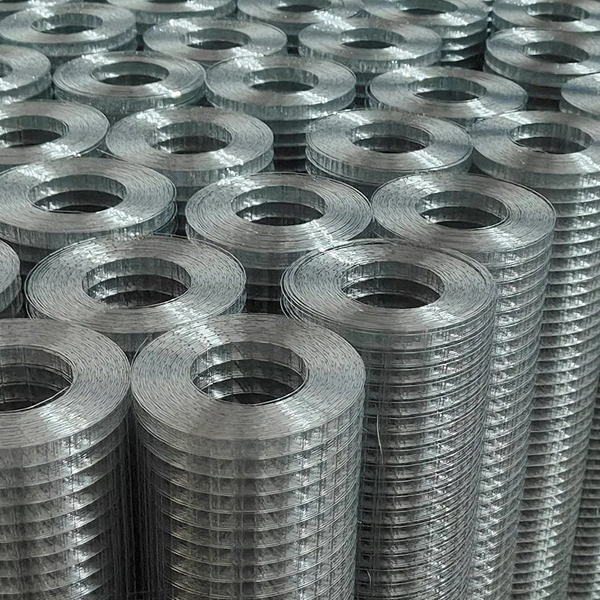

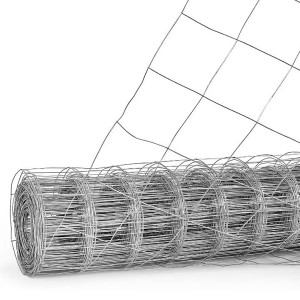

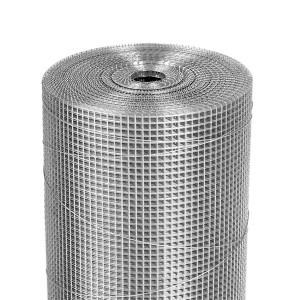

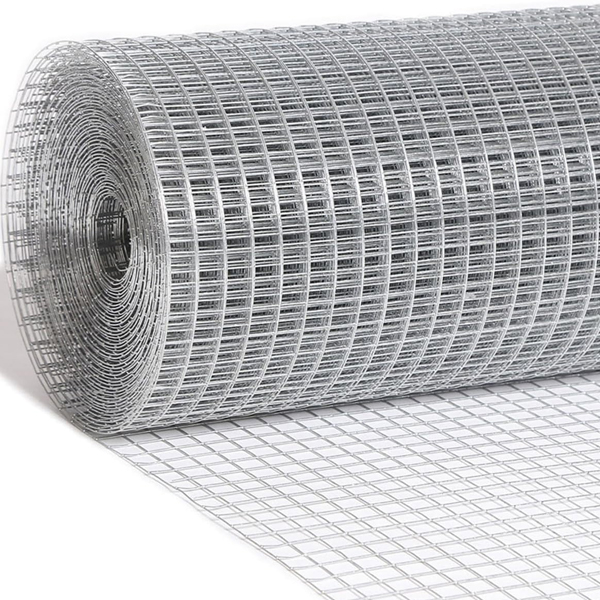

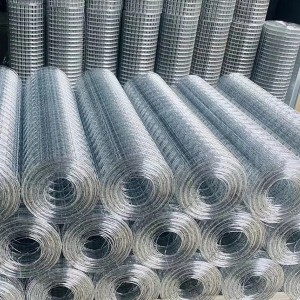

Welded Mesh Roll
Description

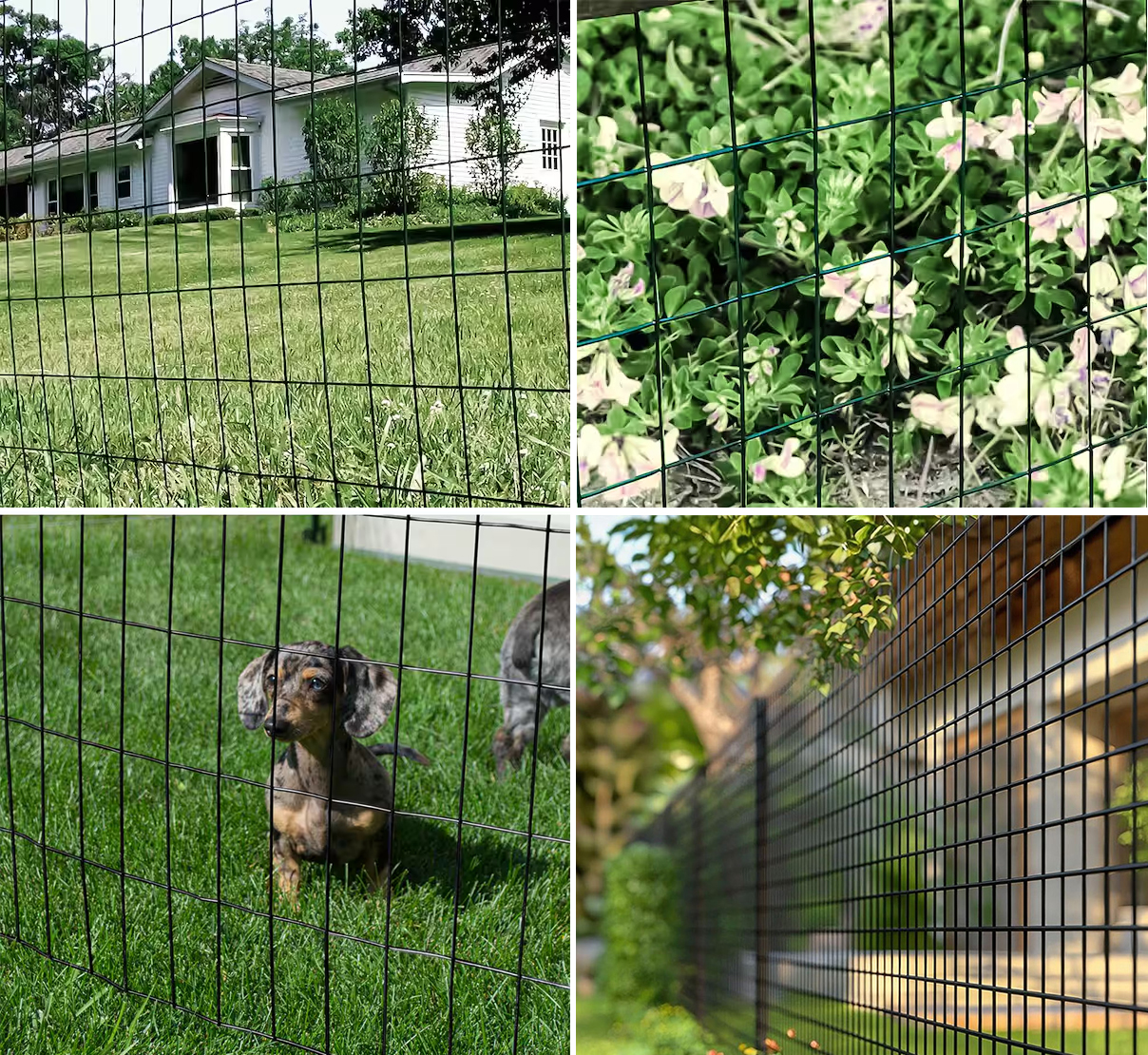

We offer a wide range of galvanized or PVC-coated welded wire mesh rolls which are ideal for fencing. These welded mesh rolls are commonly used as garden fencing or agricultural field and border fencing. The strong wire is able to enclose and protect animals and livestock as well as restrict access. Our mesh is supplied in a range of different heights, lengths, gauges and hole sizes, ensuring that we have something that will fit a wide range of applications.
Welded mesh roll with firm welding joints and smooth surface gives a strong structure and aesthetic look.
Welded mesh roll has surface treatments including electro or galvanized, galfan coated and PVC coated. Welded mesh roll is widely used for animal cage, bird aviary, heat preserving wall, plaster mesh and plant climbing support.
Specifications
| Opening | Wire Diameter BWG | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15 |
| 2” x 4" | 50.8mm x 101.6mm | 12,13,14,15 |
| 4” x 4" | 101.6mm x 101.6mm | 12,13,14,15 |
| 4” x 6" | 101.6mm x 152.4mm | 12,13,14,15 |
| 6” x 6" | 152.4mm x 152.4mm | 12,13,14,15 |
| 6” x 8" | 152.4mm x 203.2mm | 12,13,14 |
| Roll Width from 0.4M to 2M, Roll length, 5M,10M,30M,50M.etc
Material: Galvanized, PVC coating, Stainless steel wire |
||
Feature
- • Firm welding joints and sooth surface.
- • Anti-corrosion and anti-rust.
- • Easy to assemble and install.
- • High tensile strength.
- • Aesthetic design.
- • Long service life.

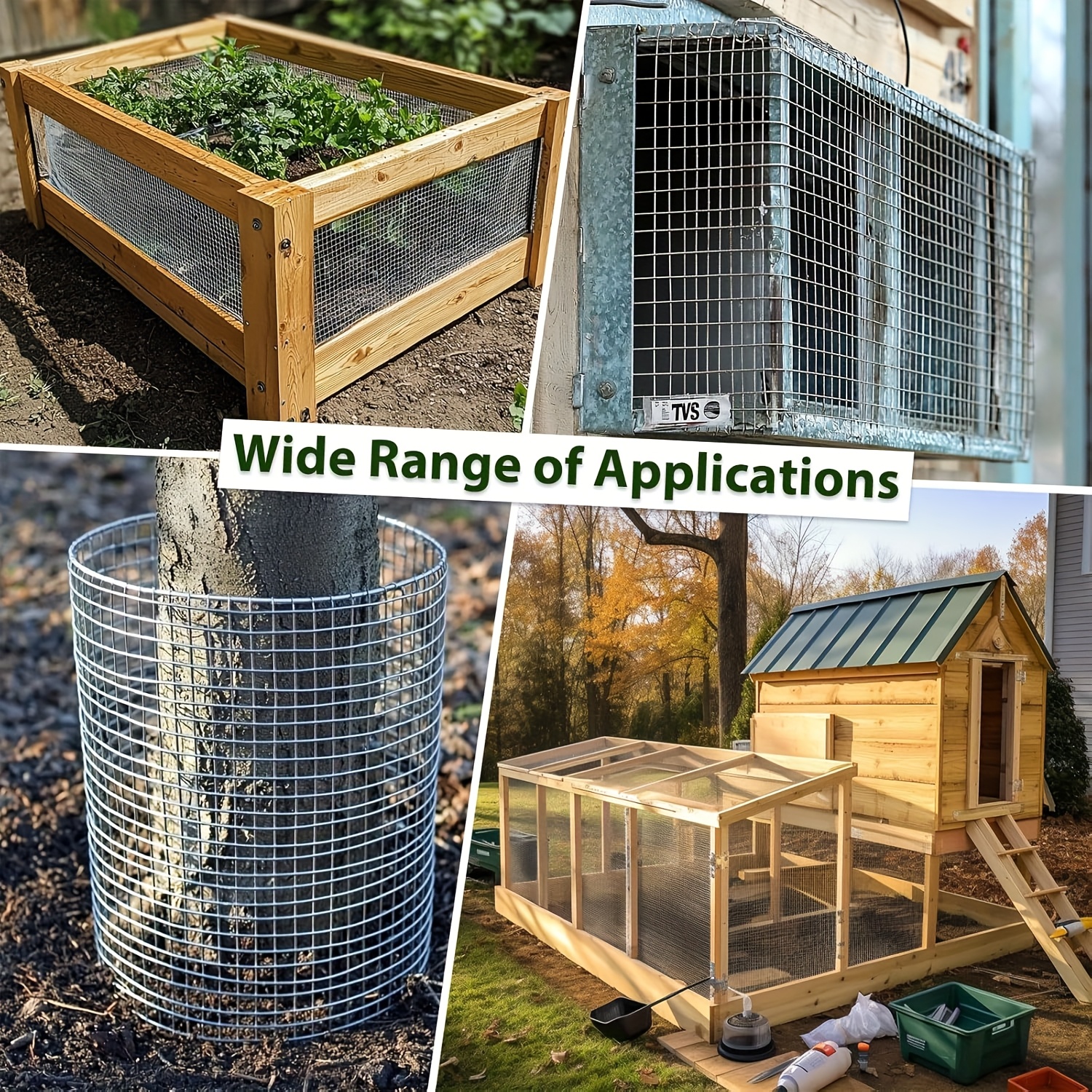

Applications
Welded Mesh Roll
• Gabion mesh. • Animal traps. • Plant trellis mesh.
• Tomato cage. • Wire container. • Floor heating system.
• Plaster mesh. • Heat preservation net. • Decorations.
• Animal cage, bird cage, and bird aviary. • Gridwall panels.
