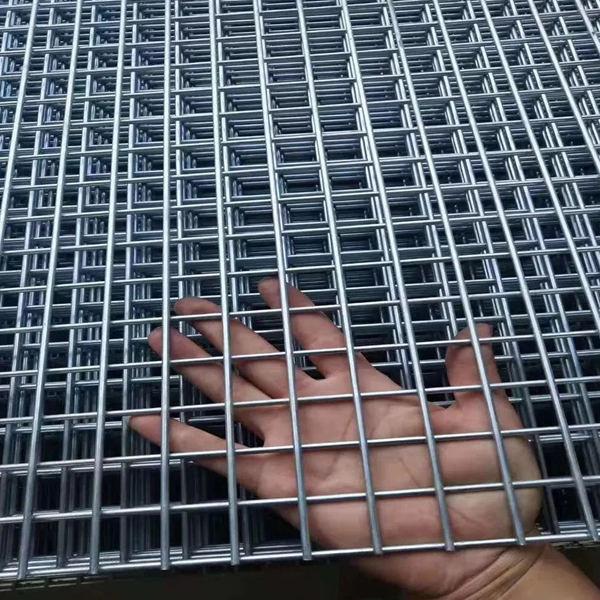

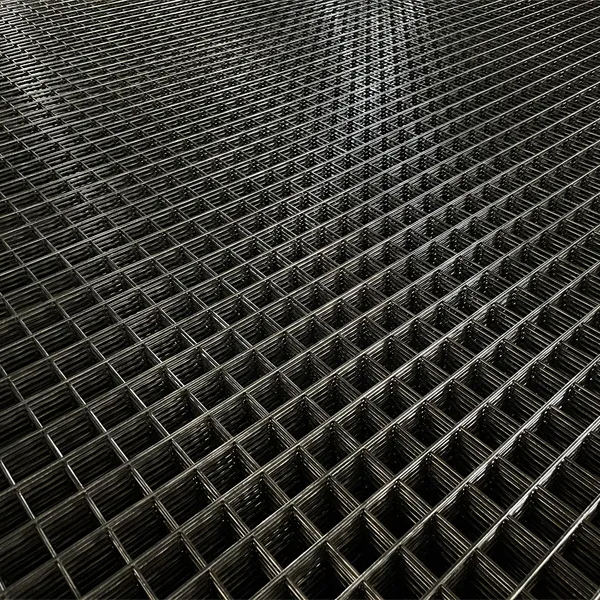

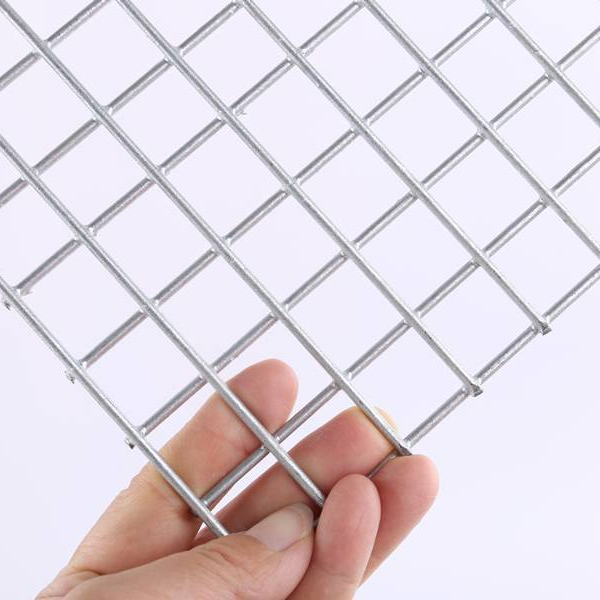

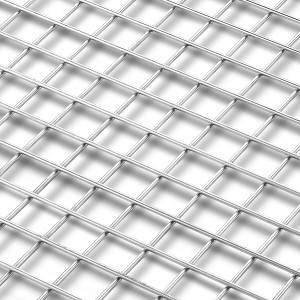

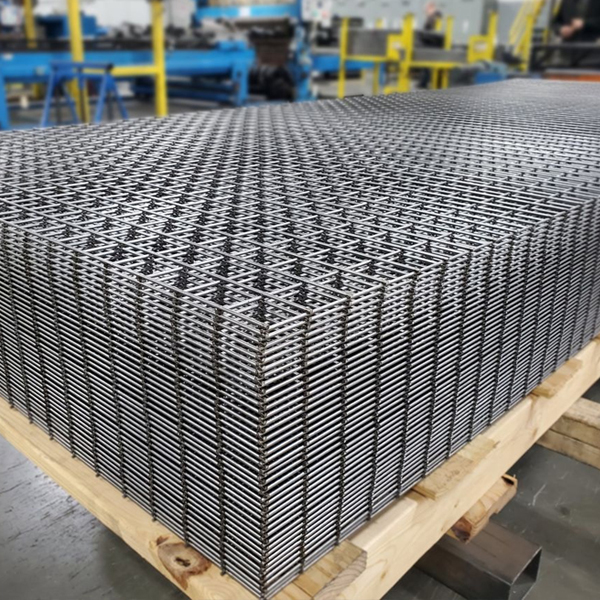

Welded Mesh Wire Panel
Description
Welded wire mesh panel is mainly used in construction projects. It has strong corrosion resistance, uniform mesh and strong overall performance. The Welded wire mesh panel is easy to construct and guarantees quality.
The PVC coated and galvanized surfaces have good corrosion resistance and weather resistance, so welded mesh panel can provides a long service life.
Panel common size is 1800 mm × 3000 mm, customers' other requirements are also accepted.
The brick wall for construction is also a kind of Welded wire mesh panel, which has the characteristics of convenient construction and quickness, and is mainly used in the construction of new countryside. To enhance the wall's tensile strength and prevent earthquake use.
Specifications
| Welded Wire Mesh Panel | |||
| Opening | Wire diameter | ||
| Inch | mm | BWG | mm |
| 1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
| 2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
| 2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
| 3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
| 3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
| 4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
| 4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
| 5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
| 6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
| Note: Special size and specifications can be made according to customers requires. | |||
Feature
- • Firm welding joints and smooth surface.
- • High tensile strength.
- • Corrosion resistance.
- • Aging resistance.
- • Weather resistance.
- • Long service life.
Applications
Welded Wire Mesh Panels

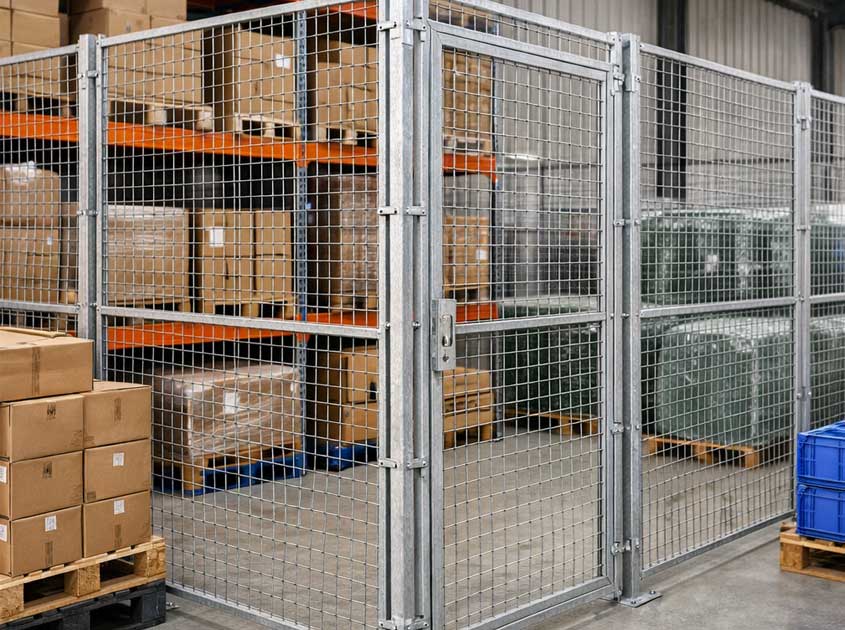

• Security cages • Aviaries • Bird cages

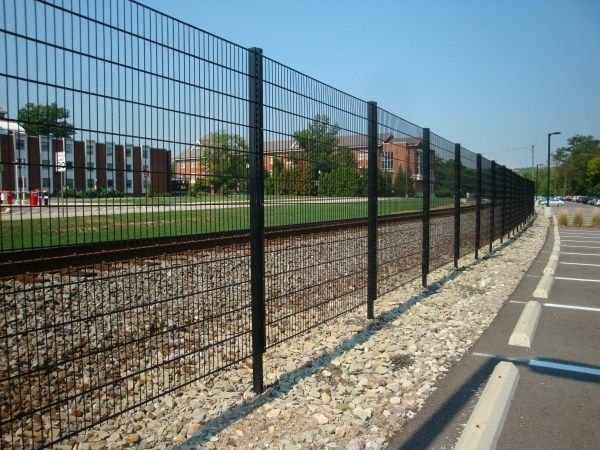

• Pet hutches • Pond covers or protection • Garden fencing
• Construction protection • Temporary fencing • Slab reinforcement
• Reinforcing walls • Insulation netting • Floor heating system
• Animals cage • Lobster trap • Zoo mesh
• Plant trellis panels • Tomato cage • Wire container
• Mine Support • Welded Gabion • Gabion noise barrier
• Gabion blast wall
