Double Wire Mesh Fence
Description

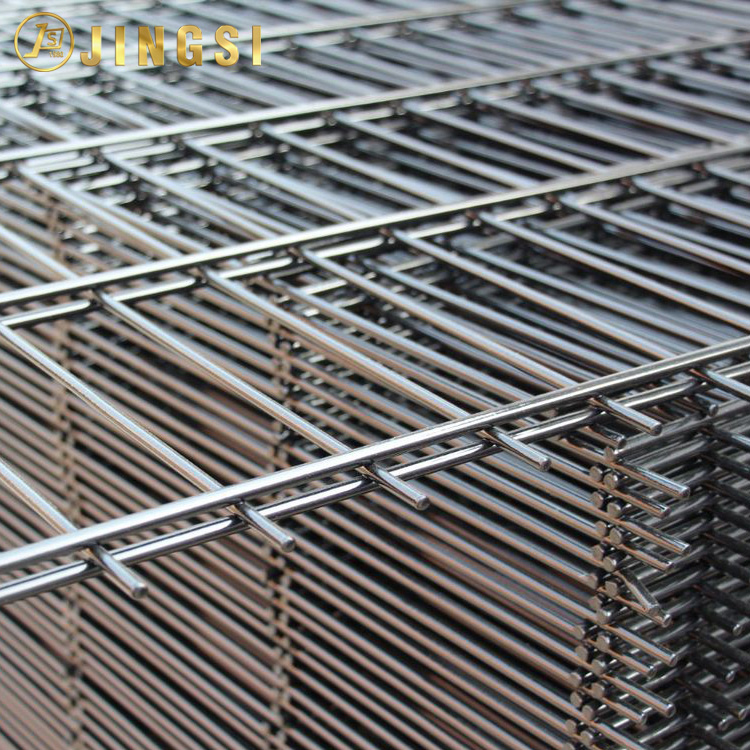

Double Mesh Fence/ 2D Panel / 868(656) Fence is made of heavy welded mesh panels with double horizontal wires. This complete professional fencing system provides both extreme rigidity and security.
German standard fence is made of high quality low carbon steel wire and galvanized wire. It is then hot dip galvanized, powder coated or pvc coated. It looks modern and attractive.

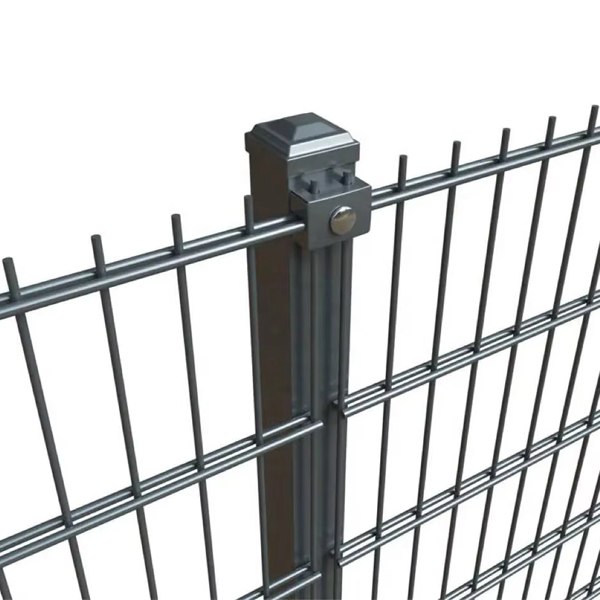

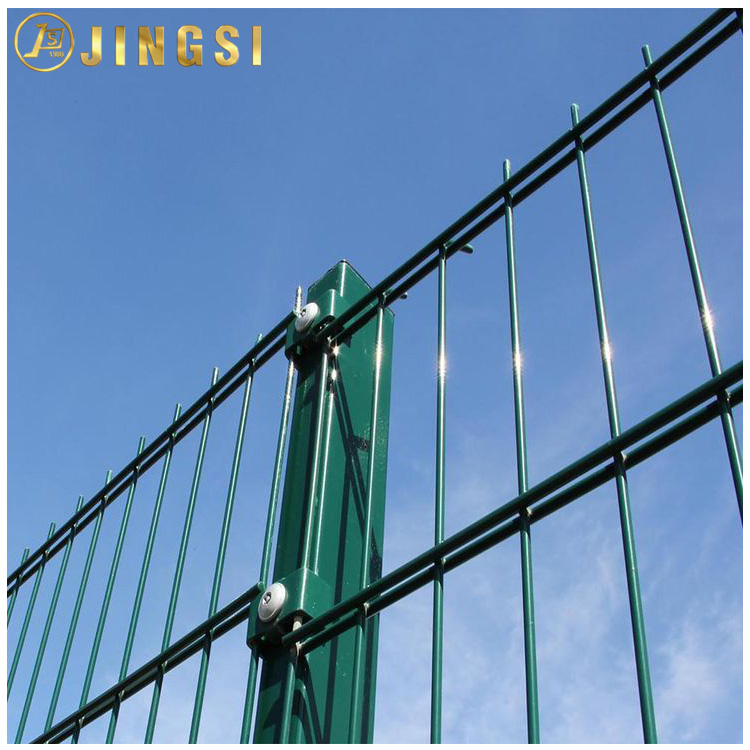

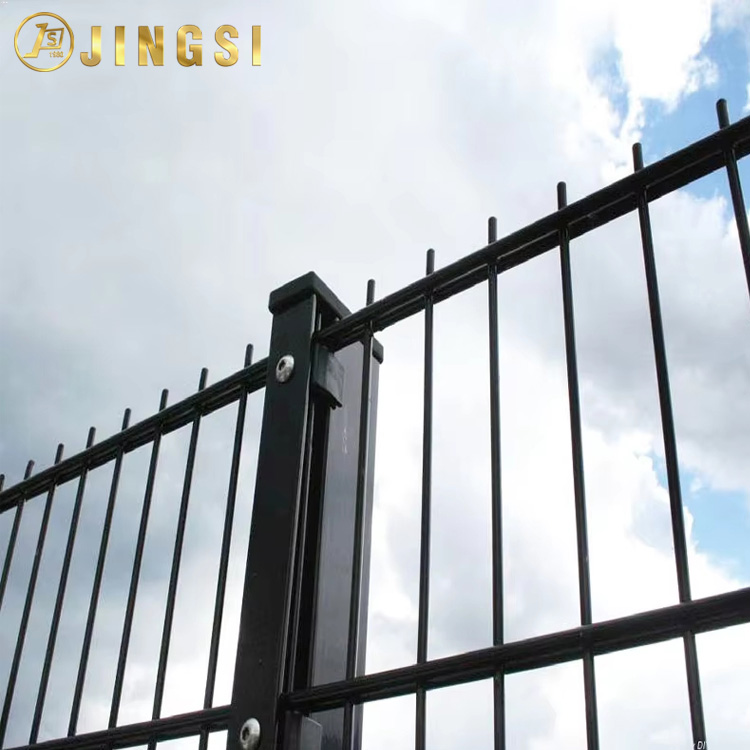

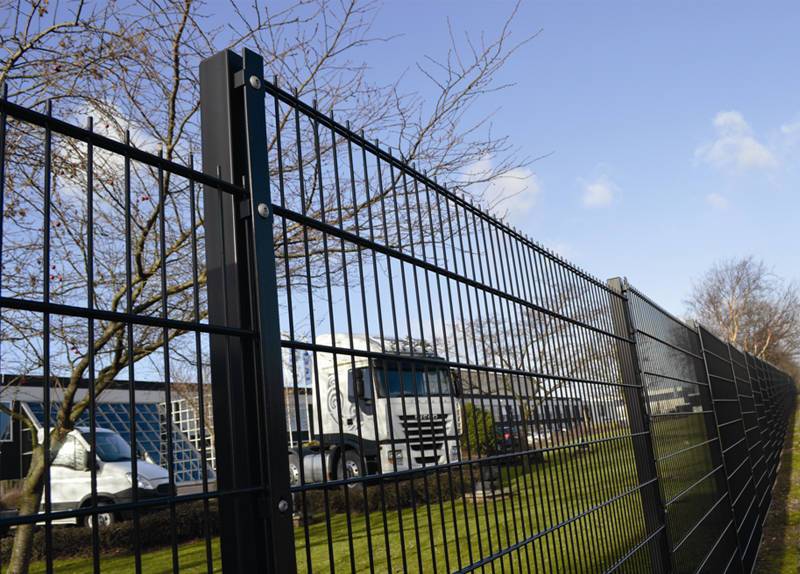

Double wire mesh fence gives the intruder little chance of a breakthrough. Use a sturdy clip to secure the panel to the steel column and secure it with a hexagonal safety screw. There are no visible fasteners on the back of the column. It is made of high quality low carbon steel wire and galvanized wire.
Specifications
| Double Wire Mesh Fence | ||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Post Type | ||
| 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm
|
6/5/6mm 8/6/8mm |
2.0m or 2.5m or 3.0m |
630mm | Round Post
48x1.5/2.0mm |
Square Post(SHS) 50X50x1.5/2.0mm |
Rectangular Post(RHS)
40x60x1.5/2.0mm |
| 830mm | ||||||
| 1030mm | ||||||
| 1230mm | ||||||
| 1430mm | ||||||
| 1530mm | ||||||
| 1630mm | ||||||
| 1730mm | ||||||
| 1830mm | ||||||
| 1930mm | ||||||
| 2030mm | ||||||
| 2230mm | ||||||
| 2430mm | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | ||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | ||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | ||||||
Applications

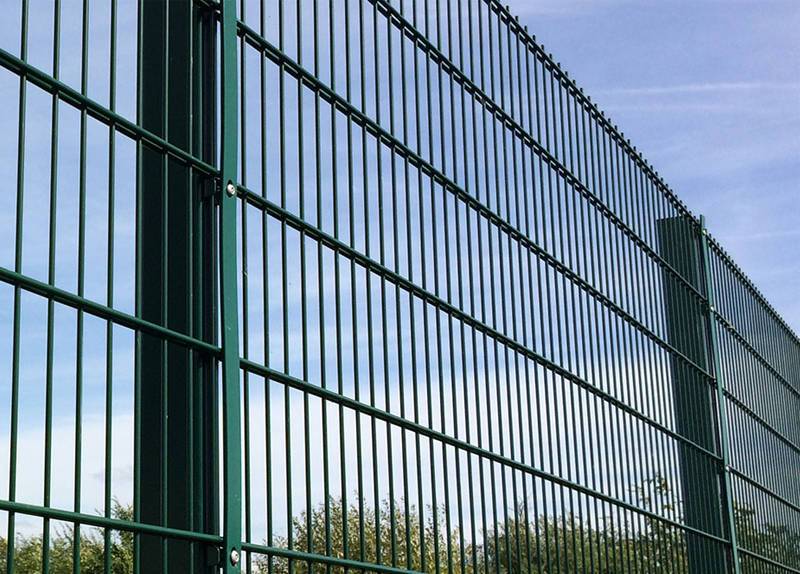

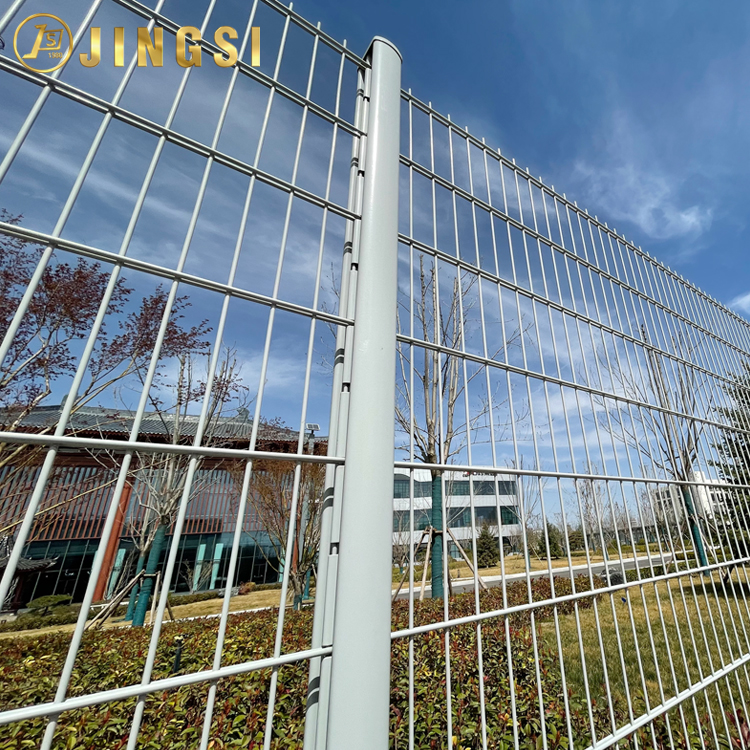

Double Horizontal wire fence

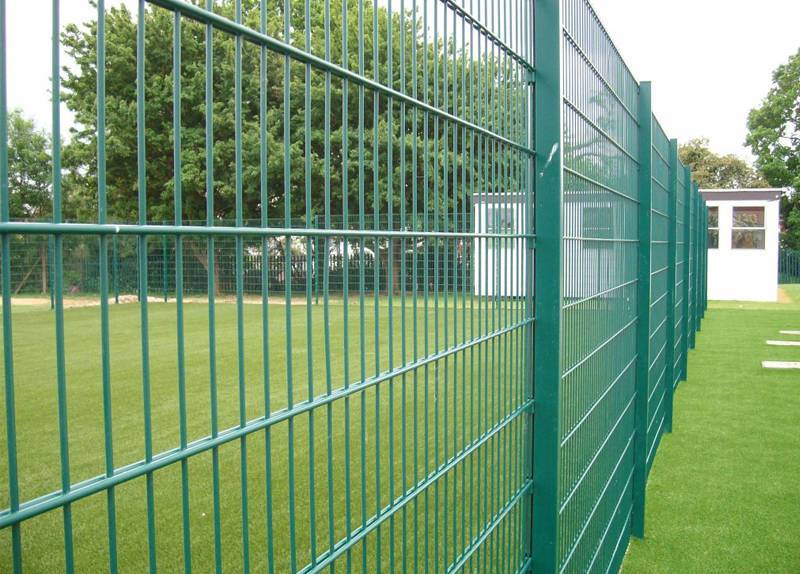

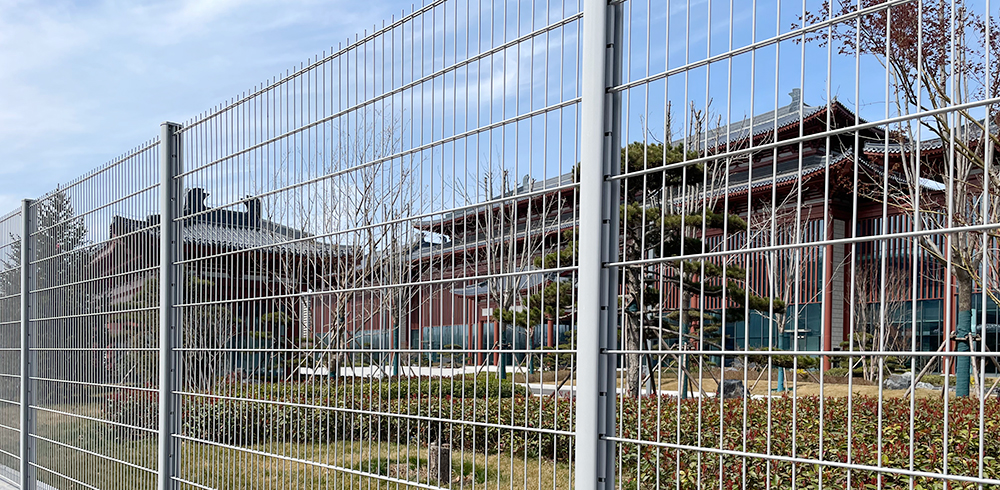

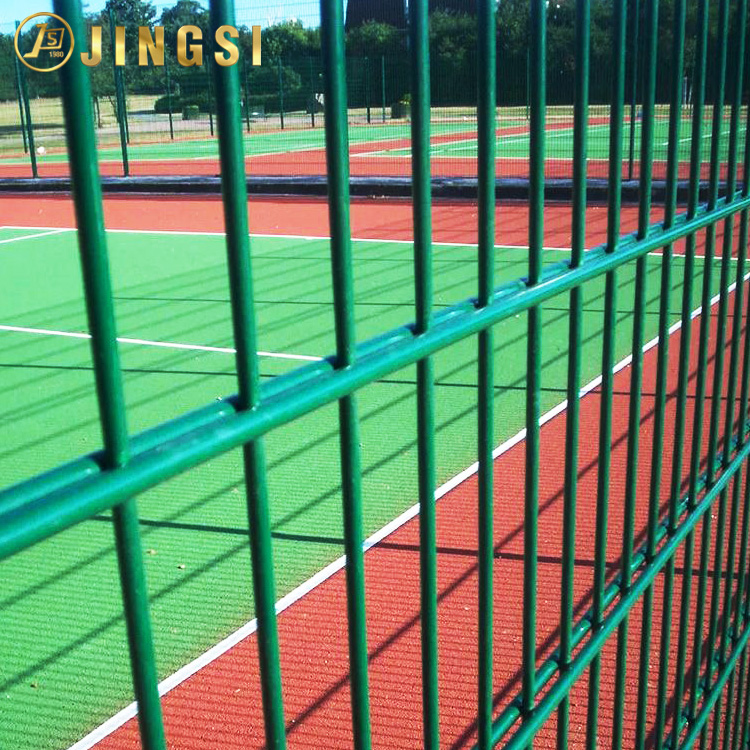

It is recommended for professional fencing of schools, playgrounds, parks, sports grounds, public buildings, factories, workshops, airports and military sites.
